HVAC Systems - Automatic

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel insulator.
2. Remove the instrument panel insulator.

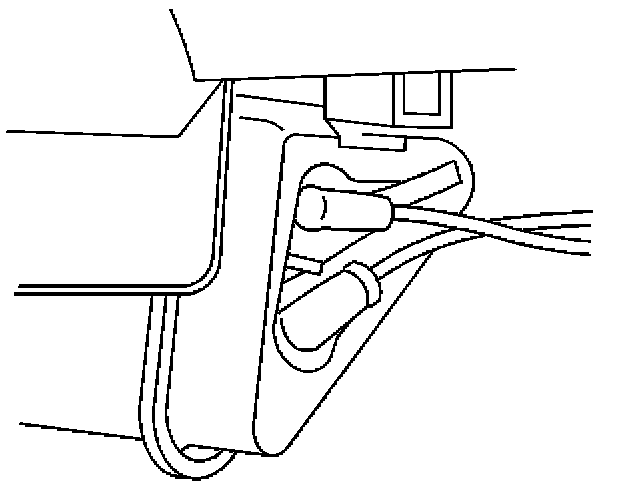

3. Disconnect the vacuum hoses from the vacuum tank.

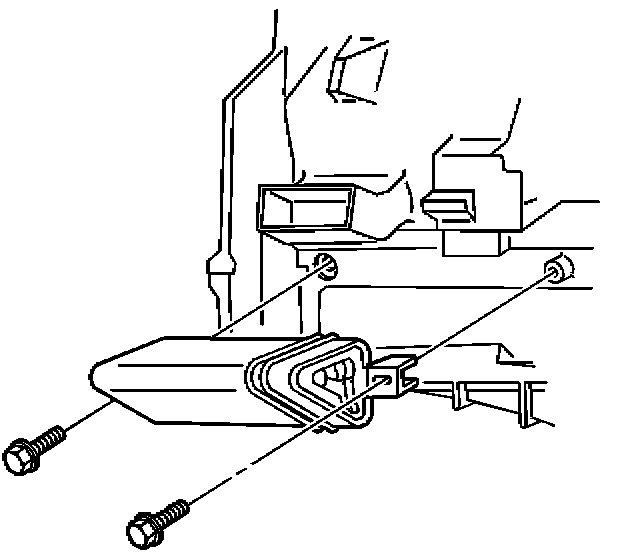

4. Remove the screws that secure the vacuum tank to the HVAC module.
5. Remove the vacuum tank.

INSTALLATION PROCEDURE




1. Install the vacuum tank to the HVAC control module.
2. Install the screws to the vacuum tank.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).




3. Connect the vacuum hoses to the vacuum tank.
4. Install the instrument panel insulator.
5. Install the instrument panel insulator.
