Sunroof / Moonroof Weatherstrip: Service and Repair

SUNROOF WINDOW WEATHERSTRIP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the sunroof window panel.

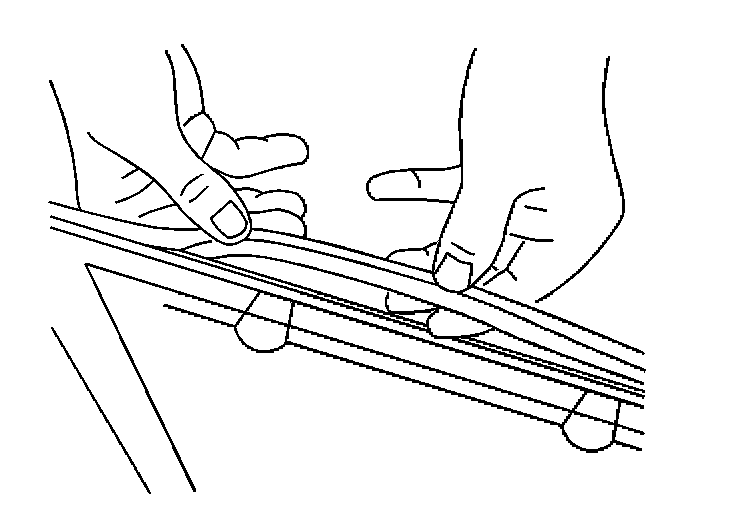

2. Remove the sunroof window seal from the sunroof window panel frame by pulling the sunroof window seal away at one point and continuing around the perimeter of the sunroof window panel frame.
3. Wipe the perimeter of the sunroof window panel frame area with a clean, dampened cloth using window cleaner GM P/N 1050427 (Canadian P/N 992727), or isopropyl alcohol in order to clean the surface of the perimeter of the sunroof window panel frame. Allow to air dry.

INSTALLATION PROCEDURE




1. Position the sunroof window panel seal onto the sunroof window panel frame.

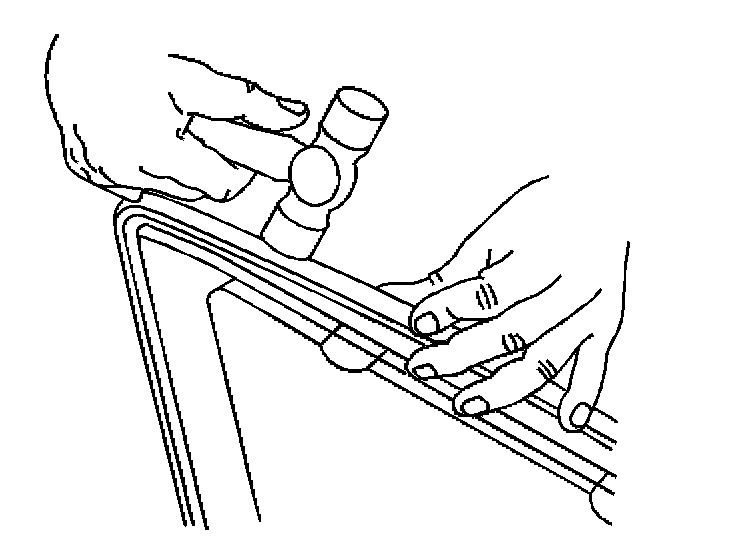

2. Firmly press the sunroof window seal into place.
A small rubber hammer will help in the installation.


IMPORTANT: Ensure that the sunroof window seal is properly seated around the entire perimeter of the sunroof window panel frame.

3. Install the sunroof window panel.
