Buick
>>
2002
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
IGN Main Relay
IGN Main Relay

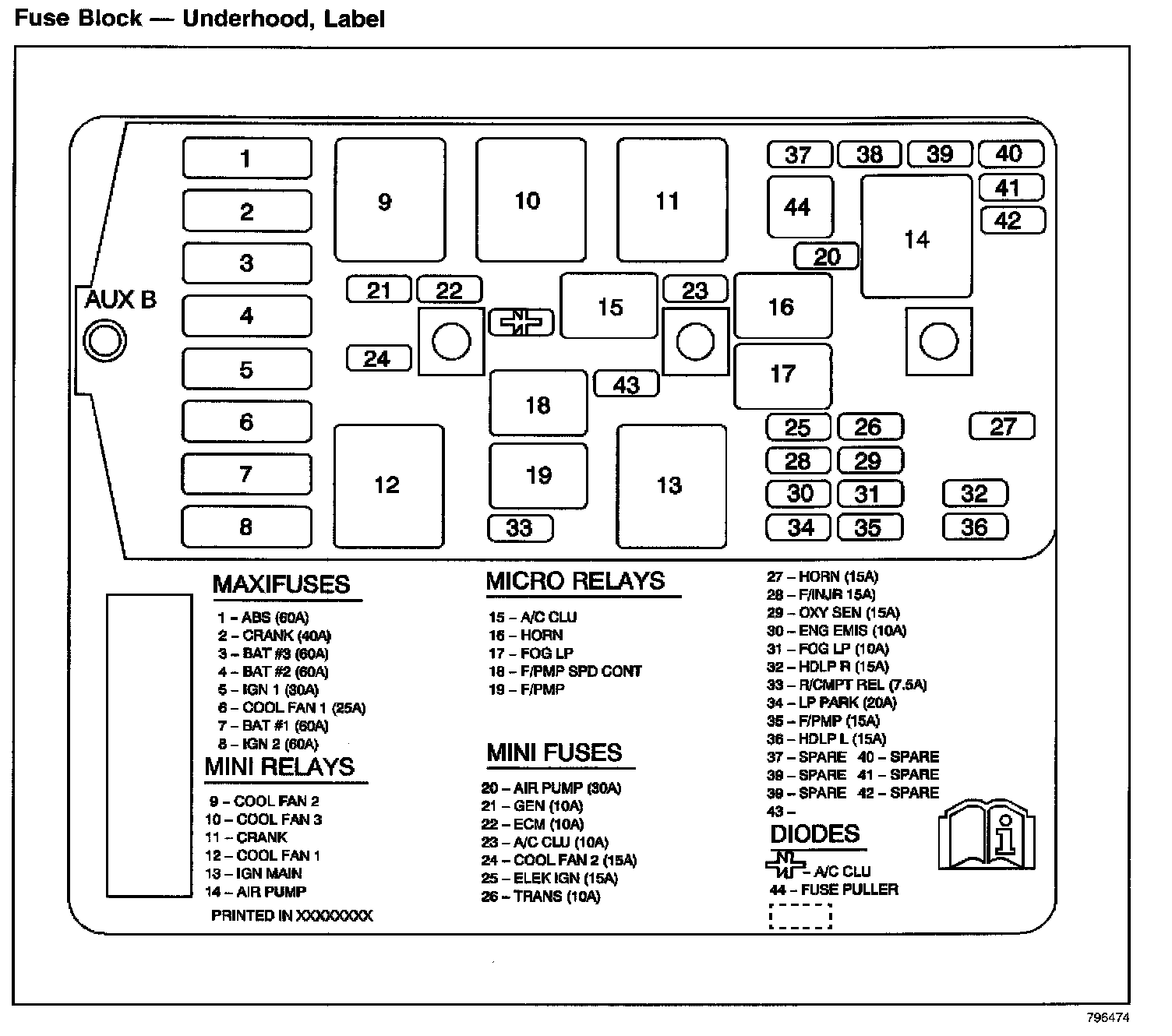

Fuse Block - Underhood, Label:
