Automatic Transmission Oil Cooler Hose Replacement

Automatic Transmission Oil Cooler Hose Replacement

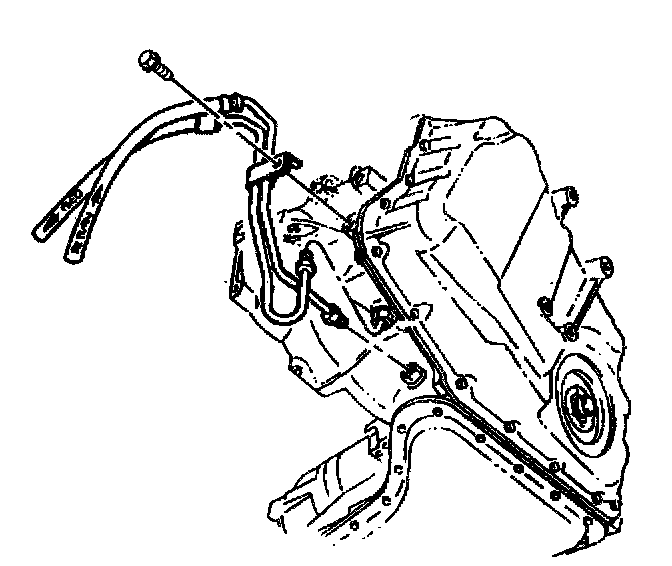

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Position the drain pan.
3. Remove the transaxle oil cooler hoses from the transaxle oil cooler fittings in the transaxle.





4. Remove the clamps from the hoses at the transaxle oil cooler and/or the auxiliary transaxle oil cooler pipes at the radiator.
5. Remove the hoses from the transaxle oil cooler and/or the auxiliary transaxle oil cooler pipes at the radiator.
6. Remove the transaxle oil cooler hose clip bolt.
7. Remove the transaxle oil cooler hoses.

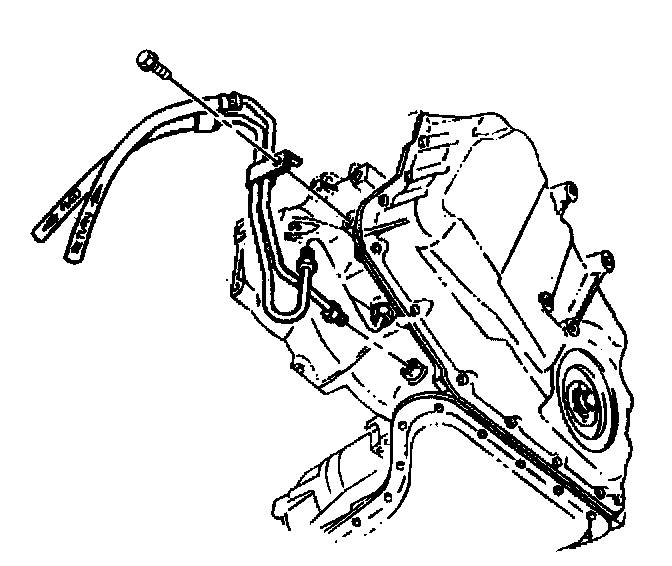

Installation Procedure

Important: The correct thread engagement is critical. The Cross threaded fittings can achieve proper tightness value and still leak.





1. Install the transaxle oil cooler hoses.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the clip bolt to the transaxle oil cooler hose.
^ Tighten the clip bolt to 25 Nm (18 ft. lbs.).





3. Install the hoses to the transaxle oil cooler and/or the auxiliary transaxle oil cooler pipes at the radiator.
4. Install the clamps to the hoses at the transaxle oil cooler and/or the auxiliary transaxle oil cooler pipes at the radiator.
5. Install the hoses to the transaxle oil cooler fittings in the transaxle.
^ Tighten the hose fittings to 23 Nm (17 ft. lbs.).
6. Lower the vehicle.

Notice: Refer to Do Not Overfill Transmission in Service Precautions.

7. Adjust the fluid level.
8. Inspect for proper completion of the repairs.
9. Inspect for fluid leaks.
