Right Front

REMOVAL PROCEDURE

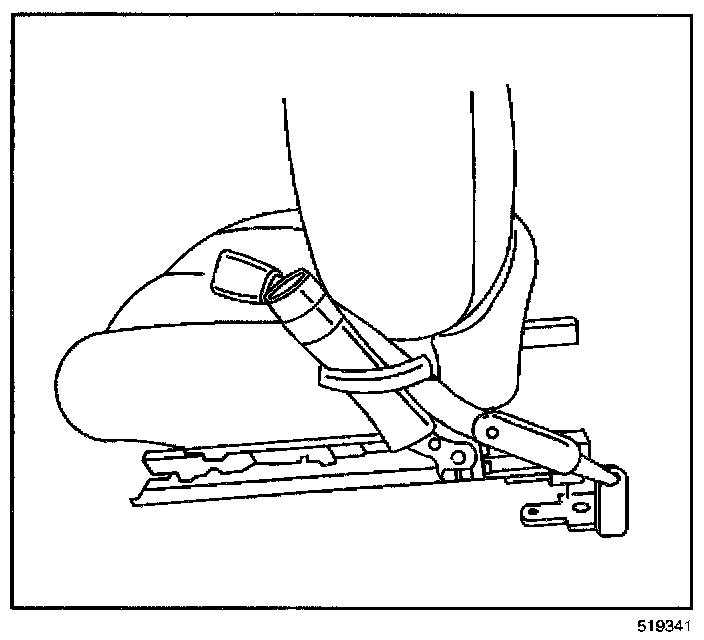

1. Position the right front seat to the forward position.
2. Remove the nut from the seat belt buckle.
3. Remove the seat belt buckle from the right front seat.

INSTALLATION PROCEDURE




1. Position the seat belt buckle to the right front seat.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt buckle nut.

Tighten
Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

3. Position the right front seat to the original position.
