Fuel Filler Hose: Service and Repair
FILLER TUBE REPLACEMENTREMOVAL PROCEDURE
NOTE: Cap the fittings and plug the holes when servicing the fuel system in order to prevent dirt and other contaminants from entering the open pipes and passages.
IMPORTANT: Always maintain cleanliness when servicing fuel system components.
1. Drain the fuel tank. Refer to Fuel Tank Draining Procedure.
2. Remove the fuel filler cap.

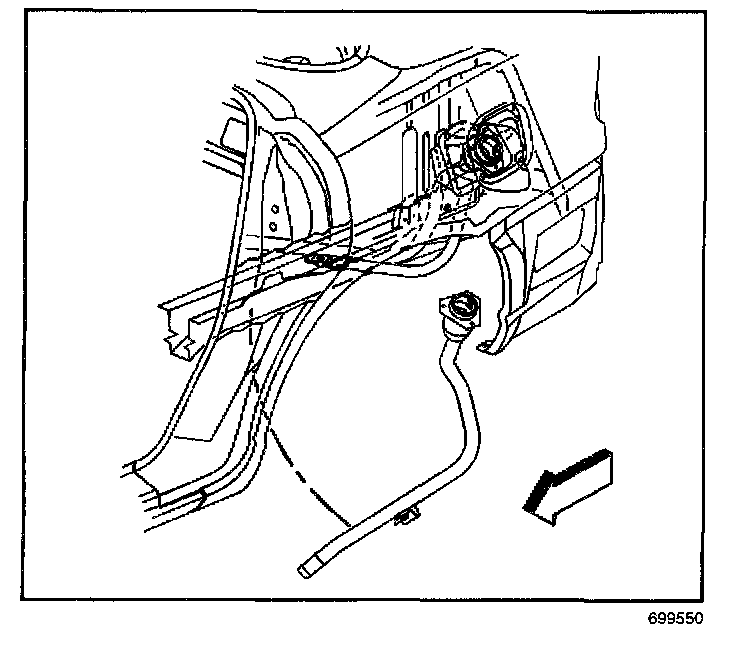

3. Remove the fuel filler pipe attaching screws from the fuel filler pocket.
4. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
5. Loosen the fuel filler hose clamp at the fuel tiller pipe.
6. Remove the fuel filler pipe attaching screw from the under body.
7. Remove the fuel filler pipe.
INSTALLATION PROCEDURE
1. Install the fuel tiller pipe.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the fuel filler pipe attaching screw to the under body.
Tighten
Tighten the fuel filler pipe attaching screw to 13 N.m (10 lb ft).
3. Inspect and make sure the filler hose (4) is fully seated on the fuel tank port and the fuel filler pipe (2).
4. Make sure the clamp (1) is properly located on the tank port between the bead (5) and tank (3).
Tighten
Tighten the fuel tank filler hose clamp to 2.5 N.m (22 lb in).
5. Lower the vehicle.

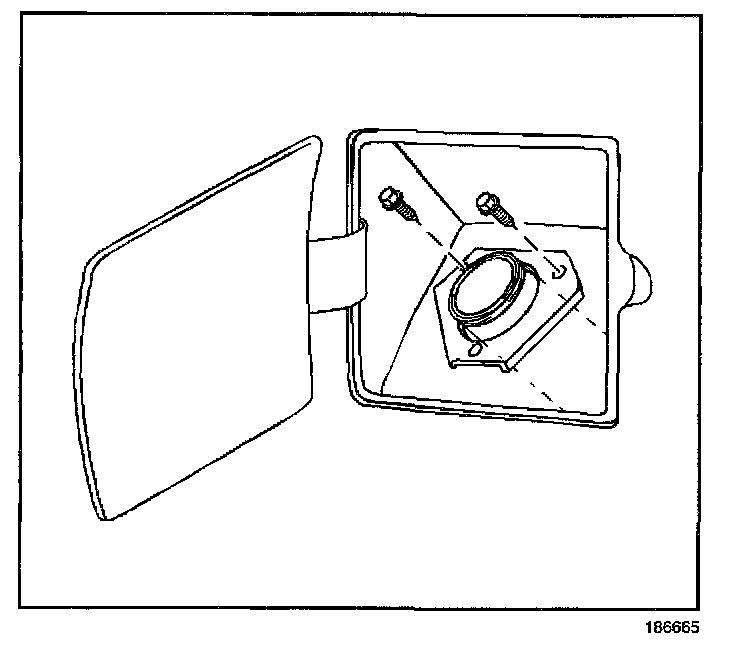

6. Install the fuel filler pipe attaching screws to the fuel filler pipe access panel.
Tighten
Tighten the fuel filler pipe attaching screws to 2.5 N.m (22 lb in).
7. Add fuel and install the fuel fill cap.
