Buick
>>
2001
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
>>

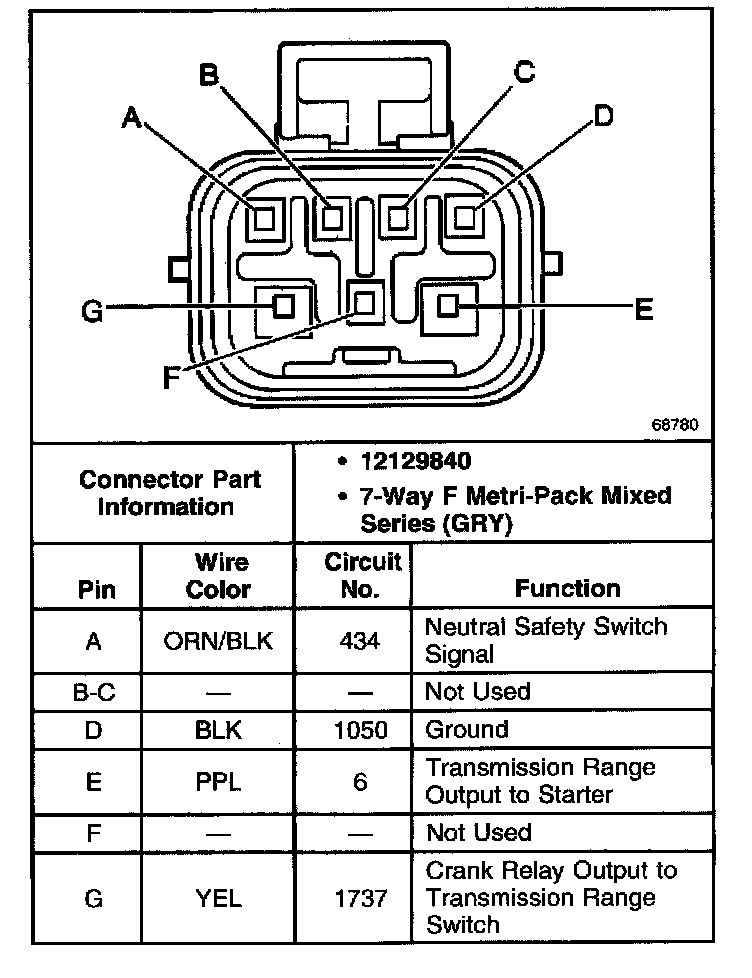

Transmission Range Switch C1 Connector, Wiring Harness Side
Transmission Range Switch C1 Connector, Wiring Harness Side
