HVAC Systems - Automatic

REMOVAL PROCEDURE




1. Remove the instrument panel insulator.

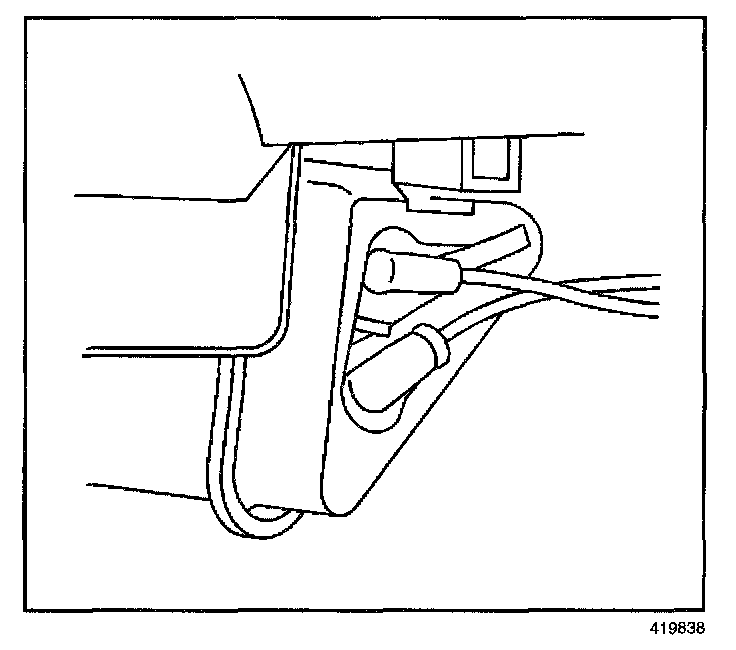

2. Disconnect the vacuum hoses from the vacuum tank.

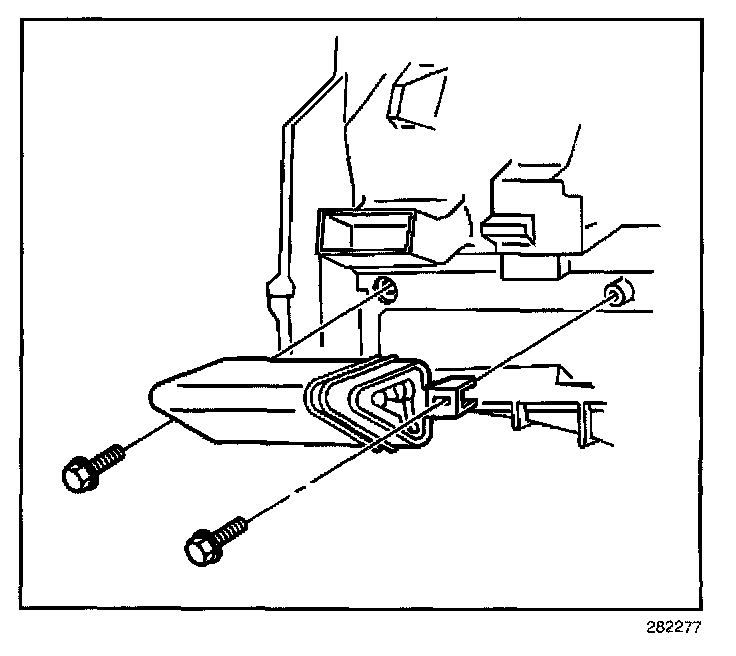

3. Remove the screws that secure the vacuum tank to the HVAC module.
4. Remove the vacuum tank.

INSTALLATION PROCEDURE




1. Install the vacuum tank to the HVAC control module.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the vacuum tank.

Tighten
Tighten the vacuum tank screws to 1.5 N.m (13 lb in).

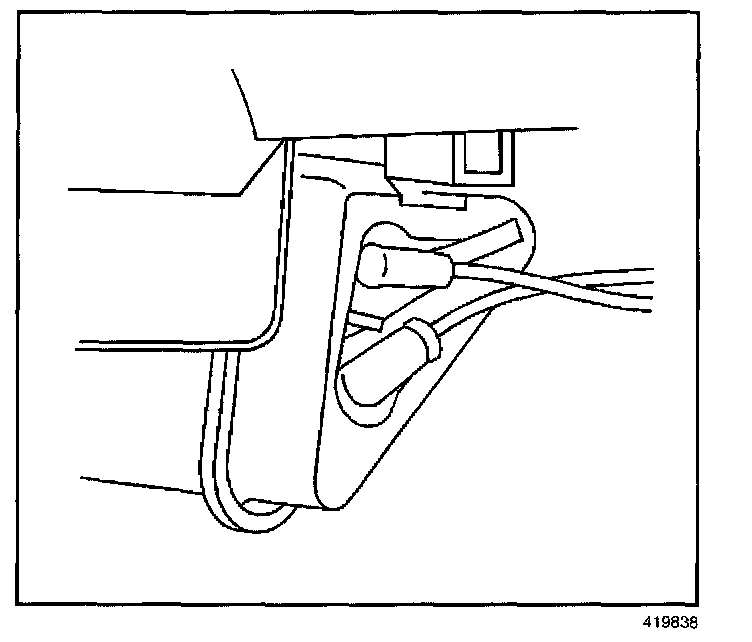

3. Connect the vacuum hoses to the vacuum tank.
4. Install the instrument panel insulator.
