Engine Mount Strut Replacement - RightRemoval Procedure

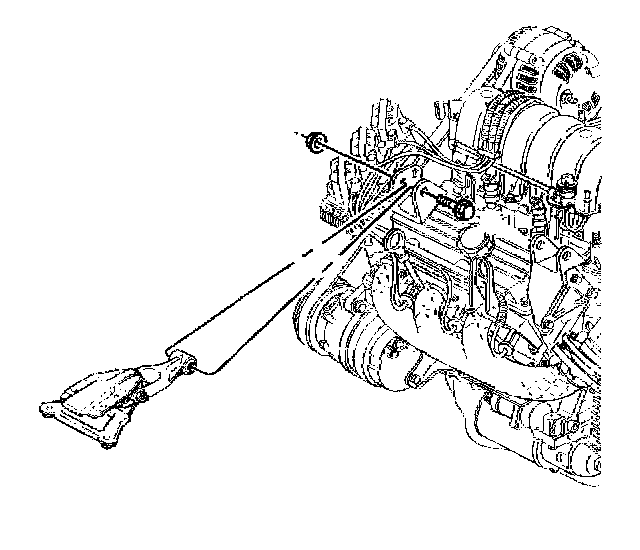

1. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.

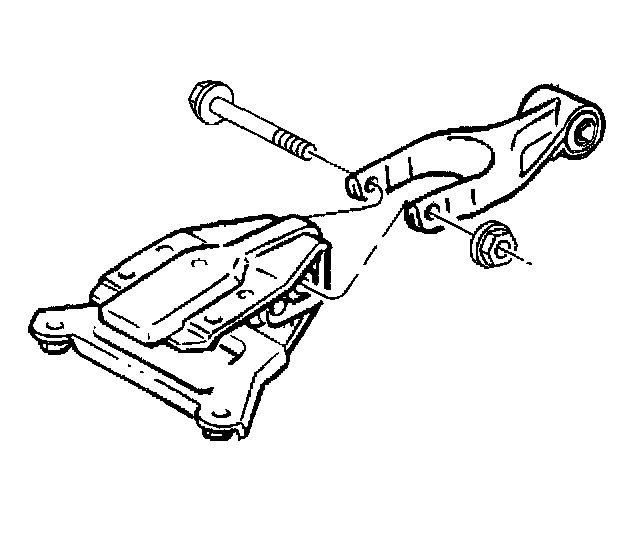

2. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
3. Remove the engine mount strut.
4. Inspect the rubber in the engine mount strut for the following conditions:
- Hardness
- Splitting
- Cracking
Installation Procedure
1. Install the engine mount strut.
Notice: Refer to Fastener Notice in Service Precautions.

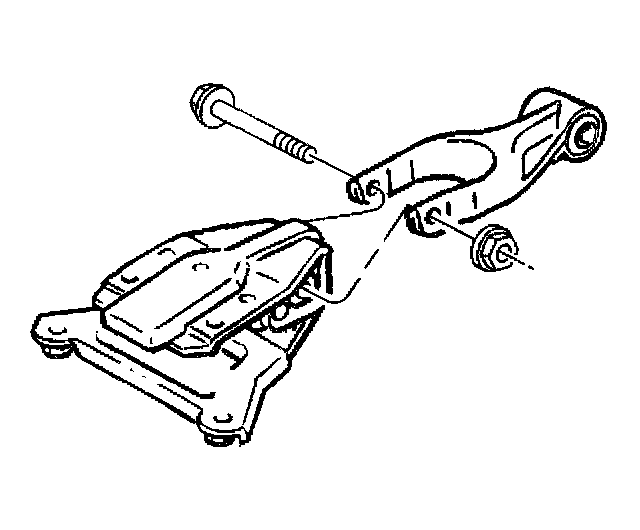

2. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
- Tighten the engine mount strut nut to 48 Nm (35 ft. lbs.).

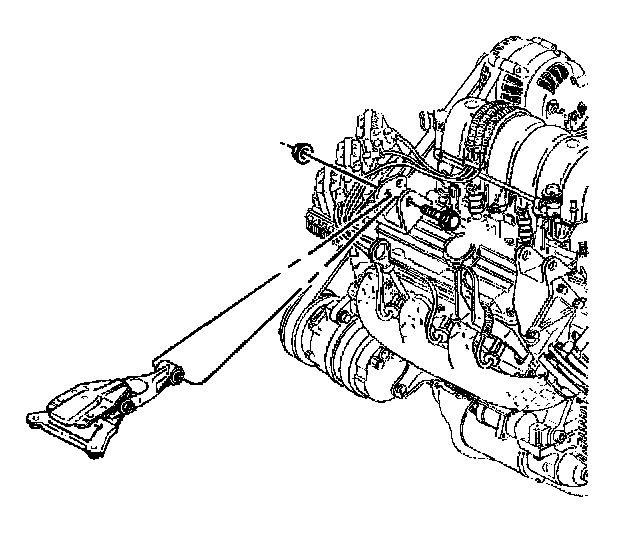

3. Install the bolt and the nut to the right engine mount strut at the right engine mount strut bracket on the engine.
- Tighten the engine mount strut nut to 48 Nm (35 ft. lbs.).
