Upper Radiator Support

Engine Mount Strut Bracket Replacement - Upper Radiator Support

Removal Procedure





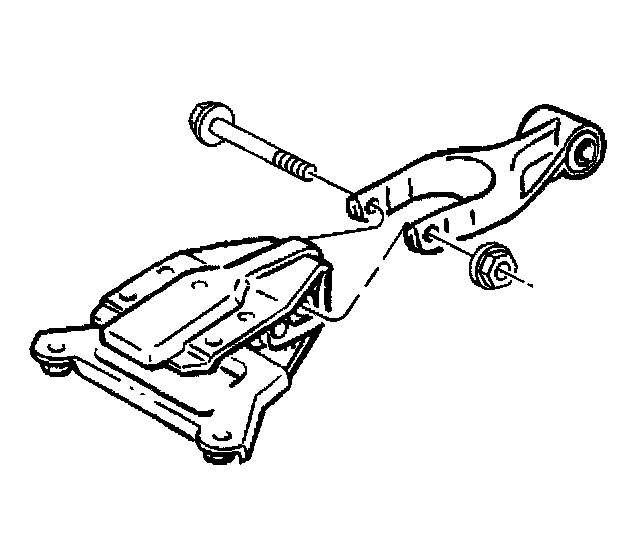

1. Remove the engine mount strut(s) from the engine mount strut bracket(s) at the upper radiator support.

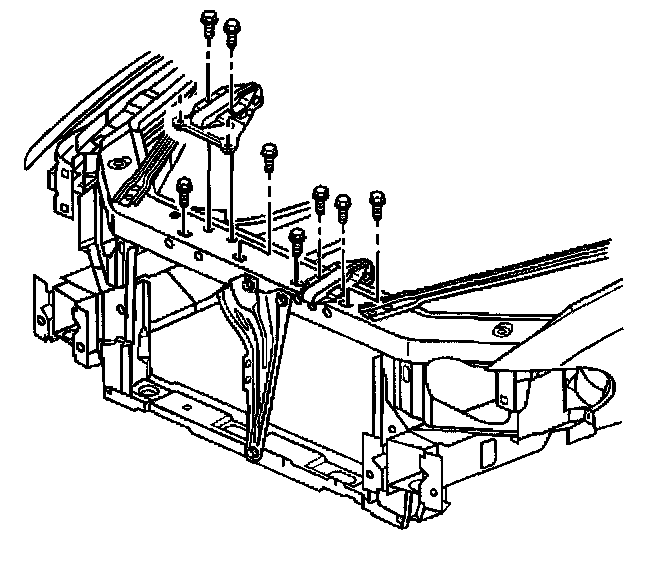

2. Remove the four bolts from the engine mount strut bracket to the upper radiator support.
3. Remove the engine mount strut bracket from the upper radiator support.

Installation Procedure





1. Position the engine mount strut bracket over the upper radiator support so the engine mount strut bracket and the engine mount strut are aligned. Align the engine mount strut bracket with the proper holes of the upper radiator support.

Notice: Refer to Fastener Notice in Service Precautions.

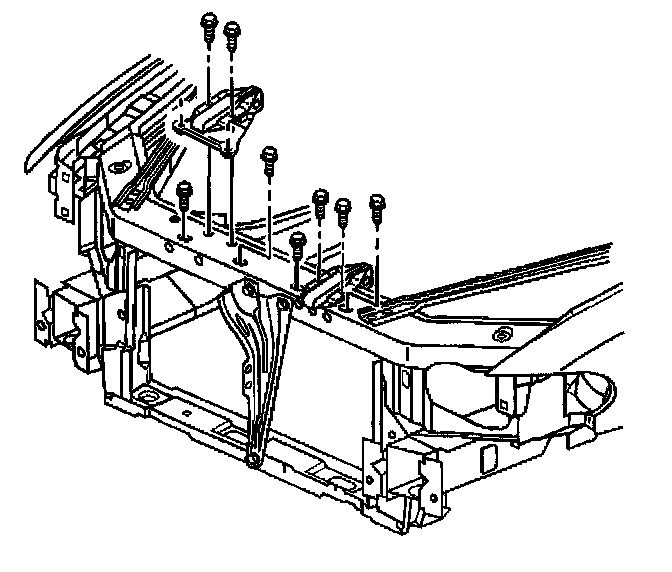

2. Install the four bolts through the engine mount strut bracket to the upper radiator support.
- Tighten the engine mount strut bracket bolts to 28 Nm (21 ft. lbs.).





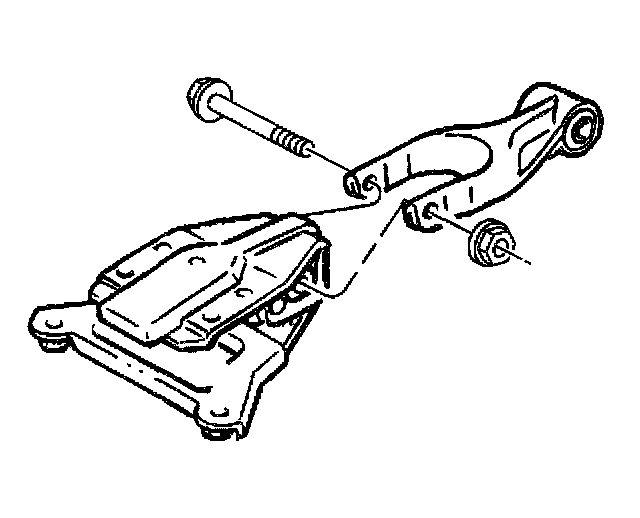

3. Install the engine mount strut(s) to the engine mount strut bracket(s) at the upper radiator support.
