Engine Mount Strut Bracket Replacement - Right Upper (L36)

Removal Procedure

Caution Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.
2. Remove the fuel injector sight shield.

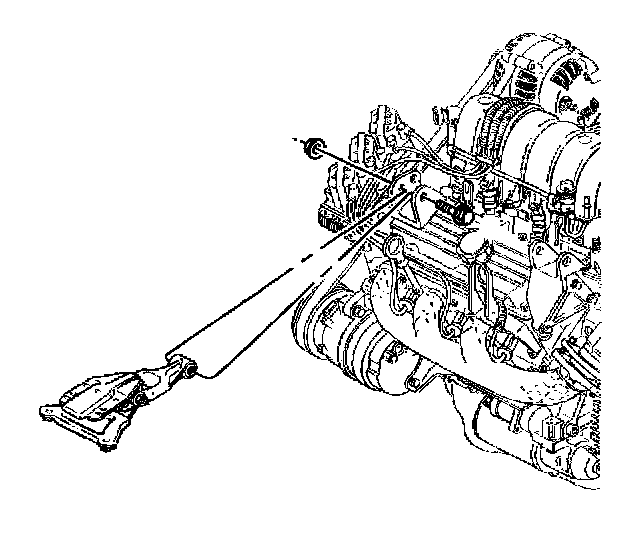

3. Remove the right engine mount strut from the upper engine mount strut bracket.

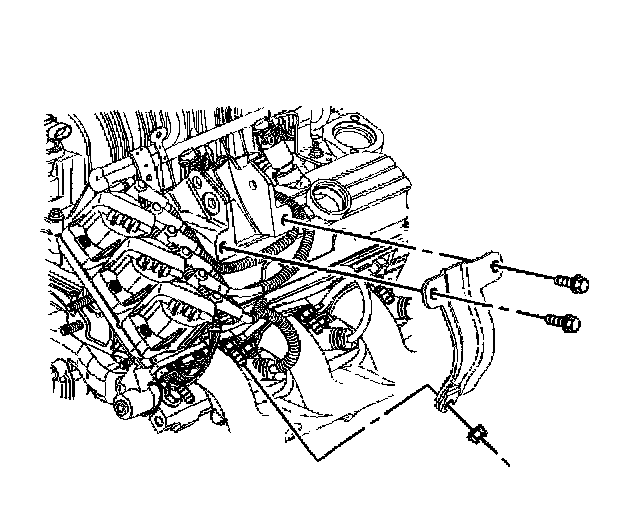

4. Remove the lower engine mount strut bracket nut.
5. Remove the lower engine mount strut bracket bolts and the bracket.
6. Remove the EVAP emissions canister purge valve.

Caution Refer to Relieving Fuel Pressure Caution in Service Precautions.

7. Relieve the fuel pressure.
8. Remove the fuel rail assembly.

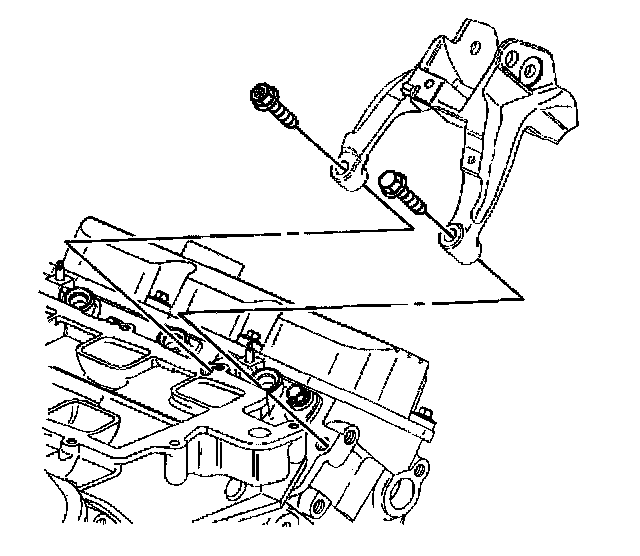

9. Remove the upper engine mount strut bracket bolts.
10. Remove the upper engine mount strut bracket.

Installation Procedure





1. Install the upper engine mount strut bracket.

Notice: Refer to Fastener Notice in Service Precautions.

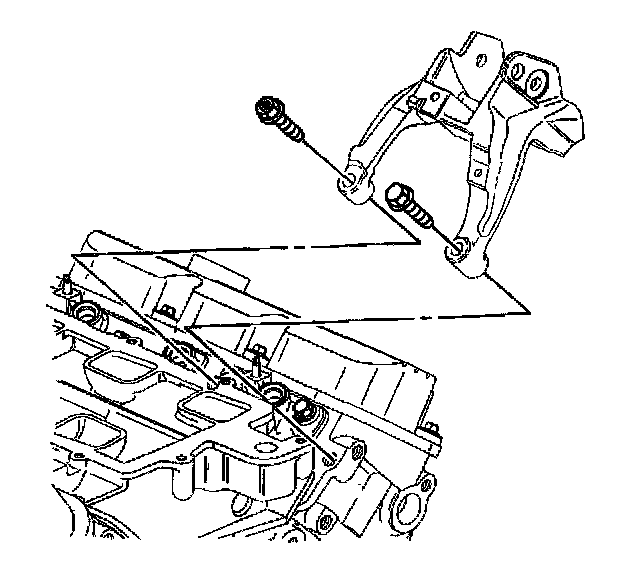

2. Install the upper engine mount strut bracket bolts
- Tighten the upper engine mount strut bracket bolts to 50 Nm (37 ft. lbs.).
3. Install the fuel rail assembly.
4. Install the EVAP emissions canister purge valve.

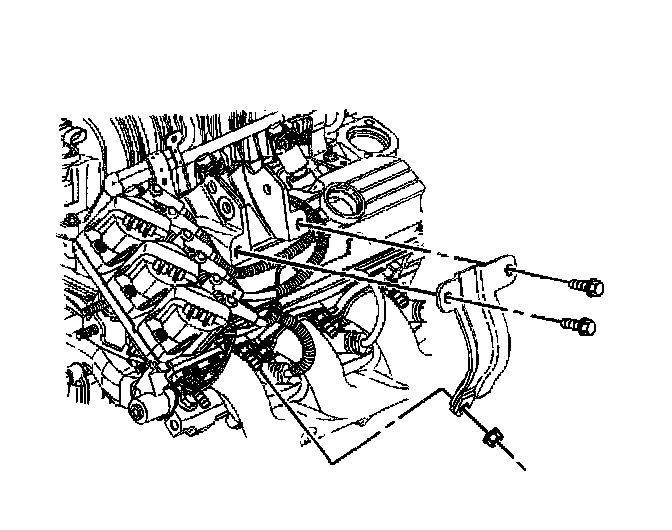

5. Install the lower engine mount strut bracket, bolts and nut.
- Tighten the lower engine mount strut bracket nut.
Tighten the lower engine mount strut bracket nut to 30 Nm (22 ft. lbs.).
- Tighten the lower engine mount strut bracket bolts.
Tighten the lower engine mount strut bracket bolts to 50 Nm (37 ft. lbs.).

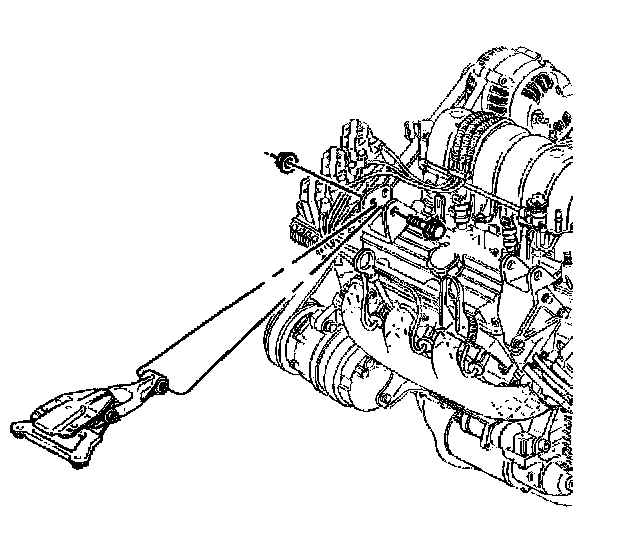

6. Install the right engine mount strut to the upper engine mount strut bracket.
7. Install the fuel injector sight shield.
8. Connect the negative battery cable.
