Left

Engine Mount Strut Bracket Replacement - Left

Removal Procedure





1. Drain the cooling system.
2. Remove the engine coolant temperature (ECT) sensor.

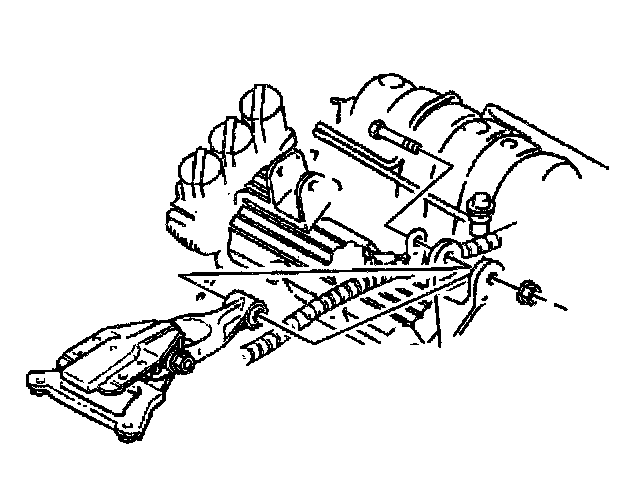

3. Remove the left engine mount strut from the left engine mount strut bracket.

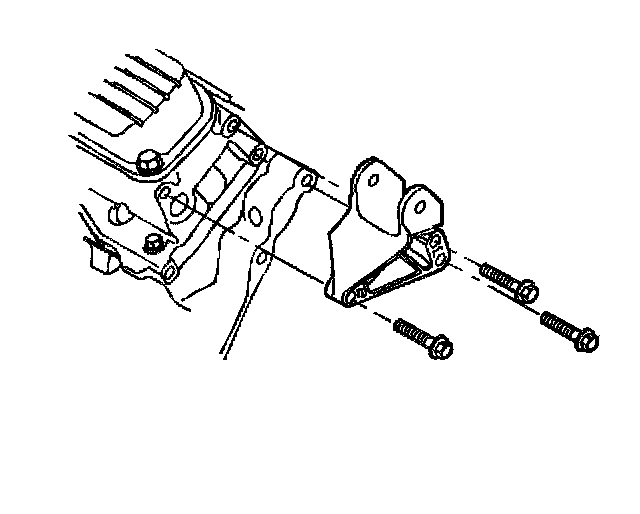

4. Remove the left engine mount strut bracket bolts.
5. Remove the left engine mount strut bracket from the cylinder head.

Installation Procedure

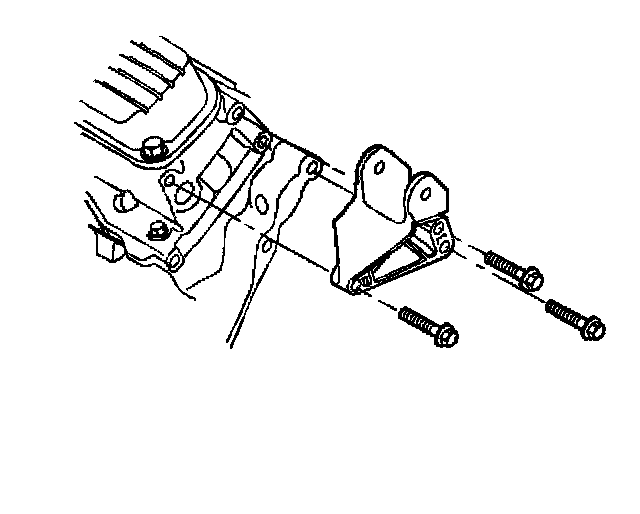

1. Install the left engine mount strut bracket to the cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the left engine mount strut bracket bolts.
- Tighten the engine mount strut bracket bolts to 50 Nm (37 ft. lbs.).

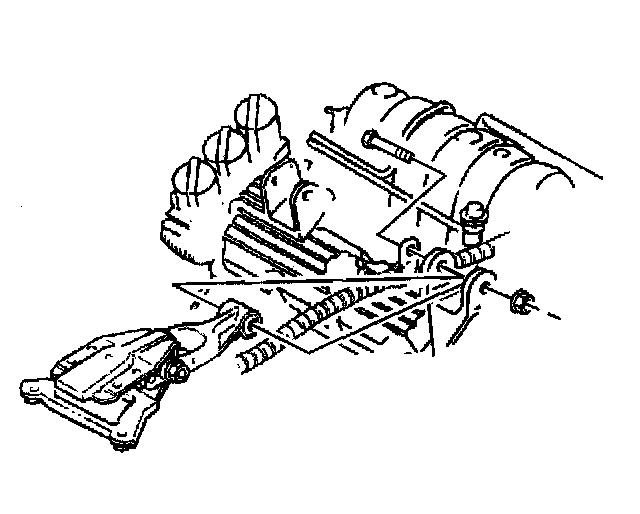

3. Install the left engine mount strut to the left engine mount strut bracket.
4. Install the engine coolant temperature (ECT) sensor.
5. Fill the cooling system.
