Washer Solvent Container Replacement

REMOVAL PROCEDURE

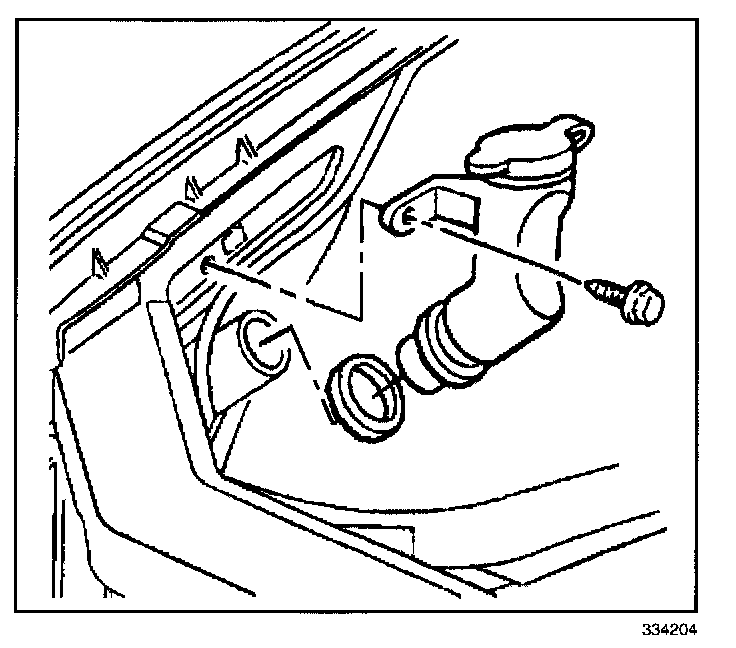

1. Remove the screw from the upper tube assembly.
2. Remove the upper tube assembly and the seal.




3. Remove the right headlamp assembly.
4. Remove the front washer solvent container screw.
5. Remove the front fender liner.
6. Disconnect the electrical connector and the hose from the washer pump.
7. Remove two screws and pull the washer solvent container away from the vehicle.
8. Disconnect the electrical connector from the washer solvent level sensor.
9. Remove the washer solvent container.
10. Remove two screws and the bracket from the washer solvent container.
11. Remove the washer solvent level sensor and seal.
12. Remove the washer pump and seal.

INSTALLATION PROCEDURE




1. Install the washer pump and the seal.
2. Install the solvent level sensor and seal.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the bracket with two screws on the washer solvent container.

Tighten
Tighten the washer solvent container bracket screws to 7 N.m (62 lb in).

4. Connect the electrical connector to the washer solvent level sensor.
5. Install the washer solvent container on the vehicle with two screws.

Tighten
Tighten the washer solvent container screws to 10 N.m (88 lb in).

6. Connect the electrical connector and the hose to the washer pump.
7. Install the front washer solvent container screw.

Tighten
Tighten the front washer solvent container screw to 5 N.m (44 lb in).

8. Install the front fender liner.
9. Install the right headlamp assembly.




10. Install the upper tube assembly and the seal on the washer solvent container.
11. Install the screw.

Tighten
Tighten the upper fill tube screw to 10 N.m (88 lb in).
