Rear

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

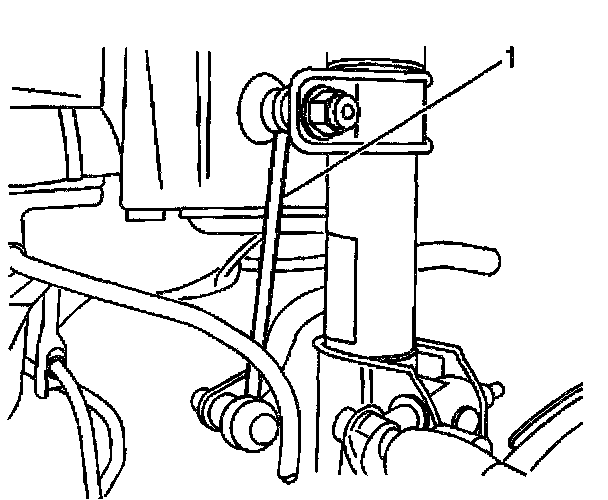

2. Remove the rear stabilizer shaft link (1) nut.





3. Disconnect the rear stabilizer shaft link (1) from the strut.
4. Remove the stabilizer shaft link.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

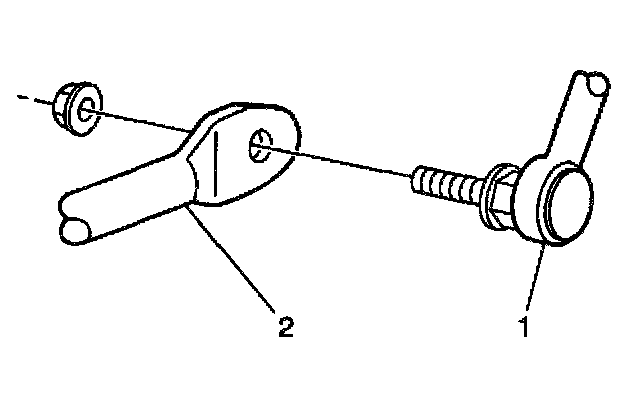

1. Install the stabilizer shaft link (1).

^ Tighten the stabilizer shaft link nut to 35 Nm (26 ft. lbs.).





2. Connect the stabilizer shaft link (1) to the strut.

^ Tighten the stabilizer shaft link to strut nut to 35 Nm (26 ft. lbs.).

3. Lower the vehicle.
