Front

Removal Procedure





1. Raise the vehicle and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

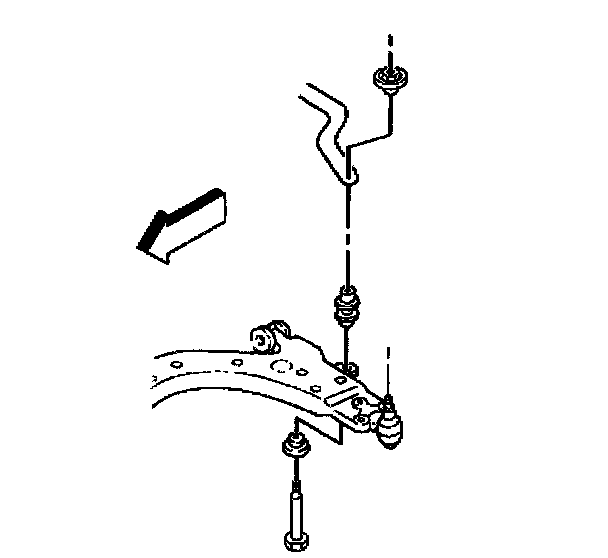

3. Remove the stabilizer shaft link bolt and nut.
4. Remove the stabilizer shaft link from the vehicle.

Installation Procedure





1. Install the stabilizer link into the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

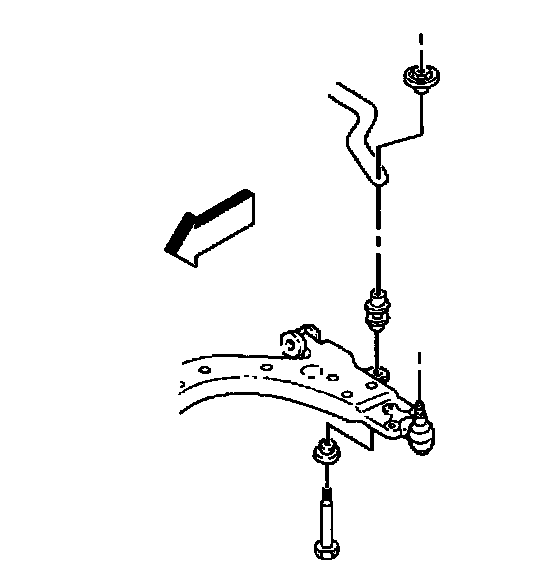

2. Install the stabilizer shaft link bolt and nut.

^ Tighten the stabilizer shaft link nut to 23 Nm (17 ft. lbs.).

3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
4. Lower the vehicle.
