Turn Signal Cancel Cam & Steering Shaft Upper Bearing Spring

- Tools Required
- J 23653-SIR Lock Plate Compressor
- J 42137 Lock Plate Compressor Adapter

Removal Procedure





1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Starting and Charging.

Caution: Refer to SIR Caution in Service Precautions.

2. Disable the SIR system. Refer to Disabling the SIR System in Restraint Systems.
3. Remove the inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in Restraint Systems.
4. Remove the steering wheel. Refer to Steering Wheel Replacement.
5. Remove the SIR coil from the steering column upper shaft. Inflatable Restraint Steering Wheel Module Coil Replacement in Restraint Systems.
6. Allow the SIR coil to hang.

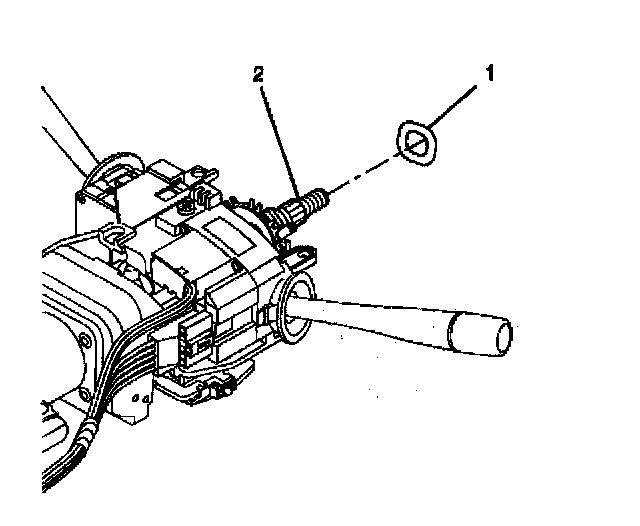

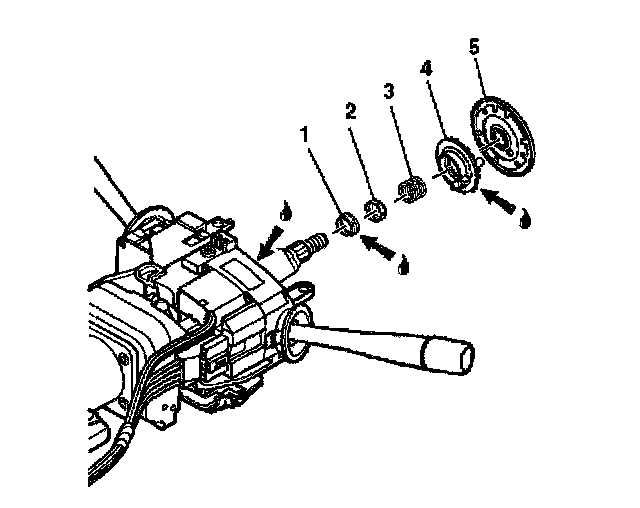

7. Remove the wave washer (1) from the steering shaft (2).

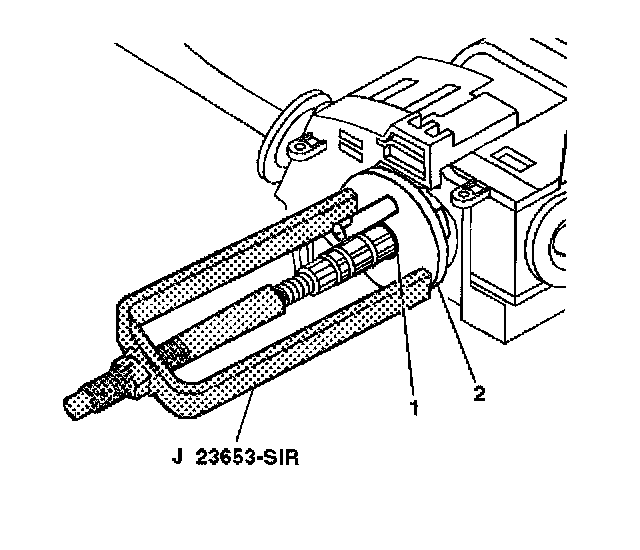

8. Compress the shaft lock plate (2) using J 23653-SIR and J 42137
9. Remove the bearing retainer (1) from the steering shaft.
10. Remove J 23653-SIR and J 42137 from the steering shaft.

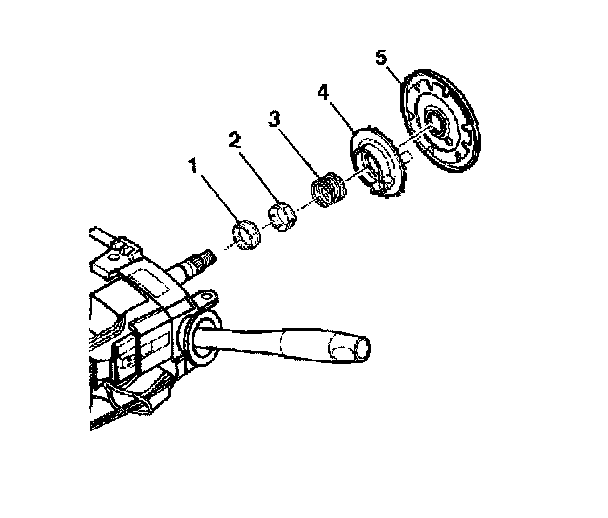

11. Remove the shaft lock shield (5) from the steering shaft.
12. Remove the turn signal cancel cam (4) from the steering shaft.
13. Remove the upper bearing spring (3) from the steering shaft.
14. Remove the upper bearing inner race seat (2) from the steering shaft.
15. Remove the inner race (1) from the steering shaft.

Installation Procedure





1. Lubricate the inner race (1) with synthetic grease.
2. Install the inner race (1) onto the steering shaft.
3. Install the upper bearing inner race seat (2) onto the steering shaft.
4. Install the upper bearing spring (3) onto the steering shaft.
5. Lubricate the lower brass surface of the turn signal cancel cam (4) with synthetic grease.
6. Install the turn signal cancel cam (4) onto the steering shaft.
7. Install the shaft lock shield (5) onto the steering shaft.





8. Compress the shaft lock shield (2) using J 23653-SIR and J 42137.
9. Install the new bearing retainer (1) onto the steering shaft.
10. Firmly seat the bearing retainer (1) into the groove on the steering shaft.
11. Remove J 23653-SIR and J 42137 from the steering shaft.





12. Install the wave washer (1) onto the steering shaft (2).
13. Install the SIR coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement in Restraint Systems.
14. Install the steering wheel. Refer to Steering Wheel Replacement.
15. Install the inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in Restraint Systems.
16. Enable the SIR system. Refer to Enabling the SIR System in Restraint Systems.
17. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Starting and Charging.
