Pulley Removal and Installation

Power Steering Pulley Replacement

- Tools Required
- J 25033-C Power Steering Pump Pulley Installer
- J 37609-A Power Steering Pump Pulley Remover

Removal Procedure





1. Remove the accessory drive belt. Refer to Drive Belt Replacement in Engine.
2. Remove the power steering pump from the engine for clearance. Refer to Power Steering Pump Replacement.

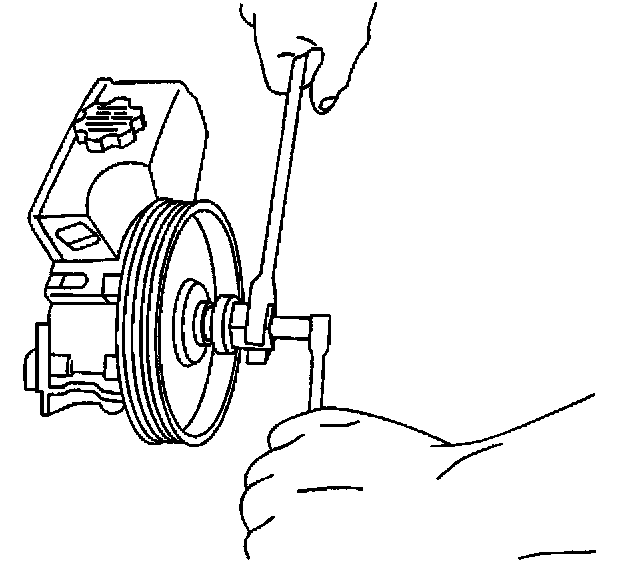

3. Using J 37609-A remove the power steering pump pulley from the power steering pump.

Installation Procedure





Important:
- Never use a hammer to install the power steering pulley.
- The face of the power steering pulley hub must be flush with the end of the power steering pump driveshaft.

1. Using J 25033-C install the power steering pump pulley to the power steering pump.
2. Install the power steering pump to the engine. Refer to Power Steering Pump Replacement.
3. Install the accessory drive belt. Refer to Drive Belt Replacement in Engine.
4. Fill the power steering system. Refer to Checking and Adding Power Steering Fluid.
5. Bleed the power steering system. Refer to Bleeding the Power Steering System.
6. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks.
