Center Rear

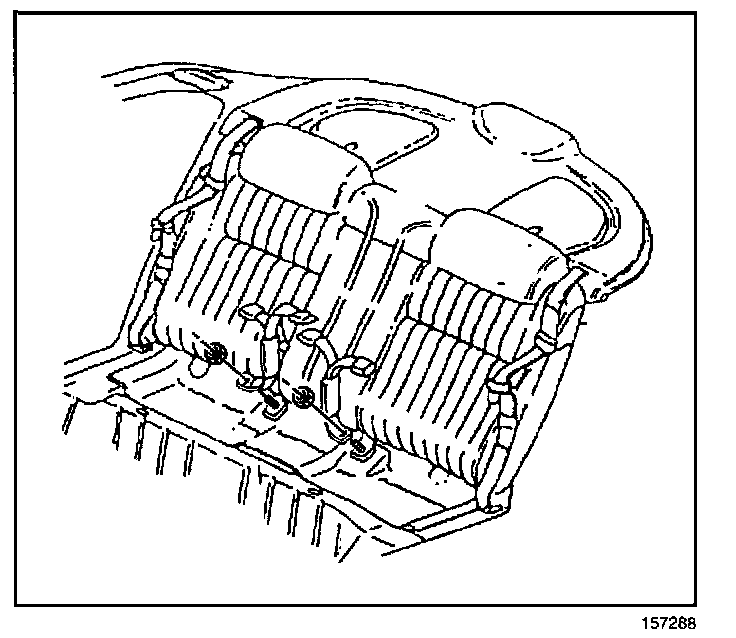

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the center seat belts nuts.
3. Remove the center seat belts from the vehicle.

INSTALLATION PROCEDURE

IMPORTANT: Verify that the rear seat belt anchors are installed in their proper orientation.




1. Install the center seat belts to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the center seat belts nuts.

Tighten
Tighten the rear seat center belts nuts to 42 N.m (31 lb ft).

IMPORTANT: Be sure to route the buckle correctly through the rear seat cushion.

3. Install the rear seat cushion.
