Home
>>
Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Knock Sensor
>>
Diagrams
>>
Connector Views
Connector Views

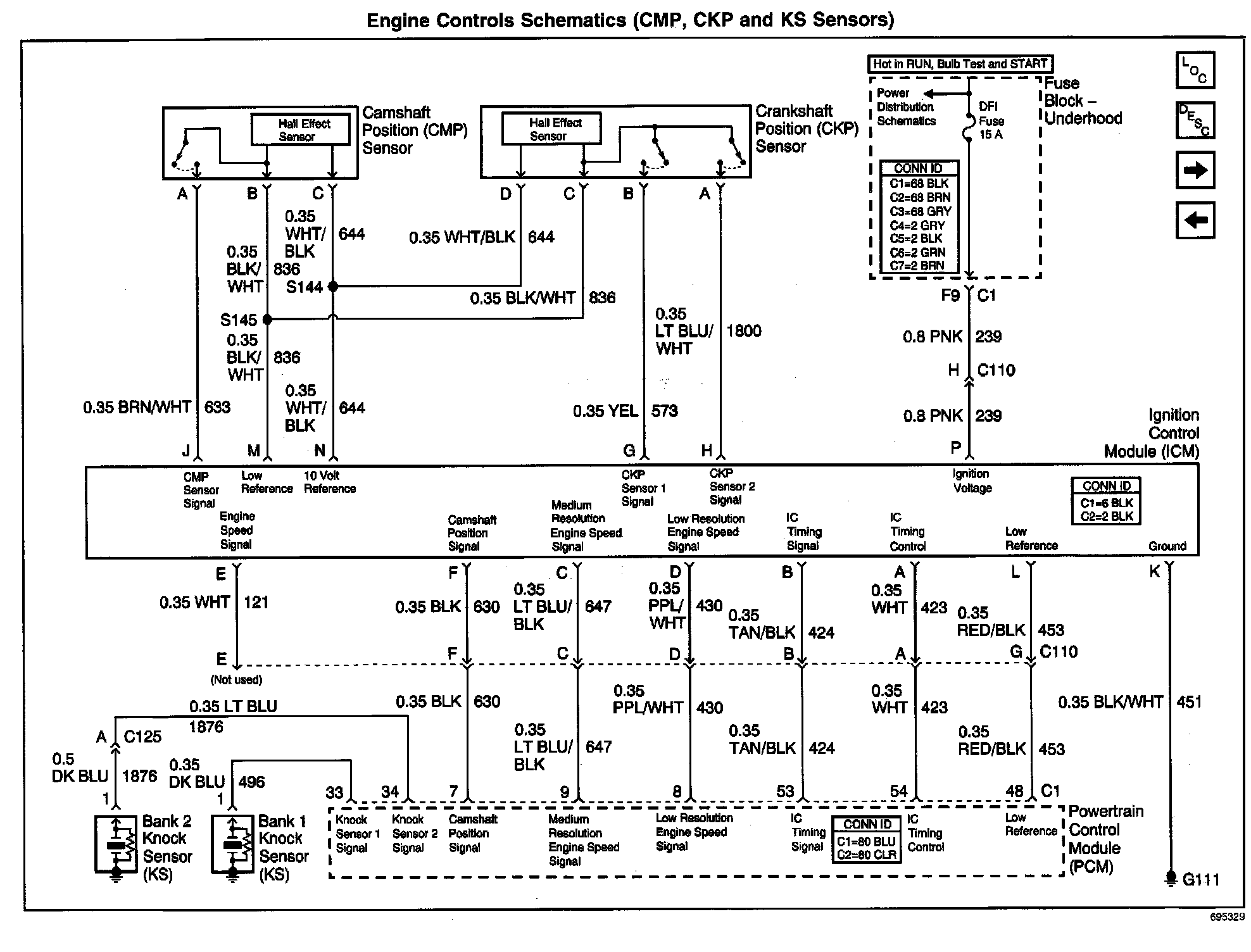

Engine Controls Schematics: CMP, CKP And KS Sensors:
