Home
>>
Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Controls
>>
Fuel Injectors
Fuel Injectors

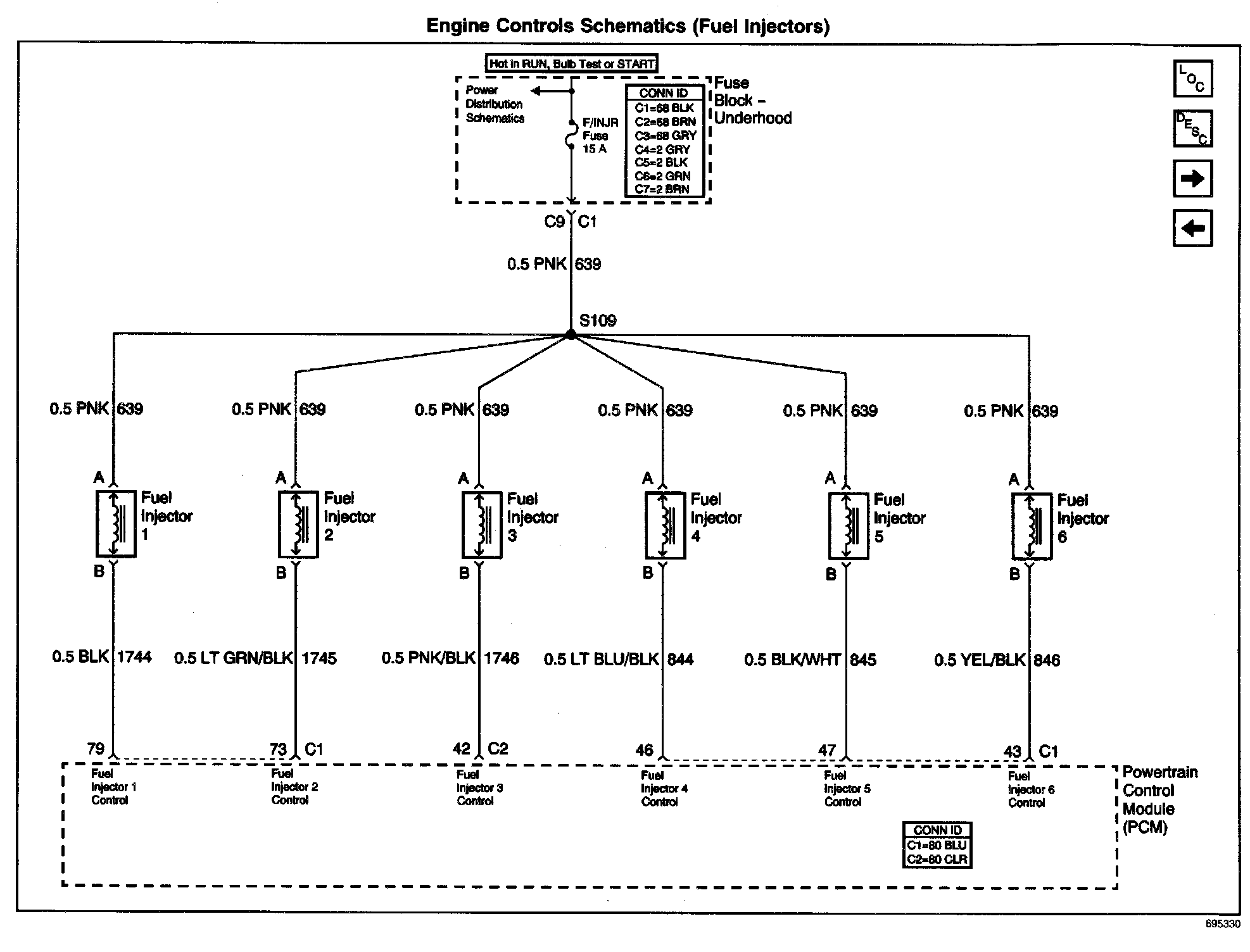

Engine Controls Schematics: Fuel Injectors:
