Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
TRANS
TRANS

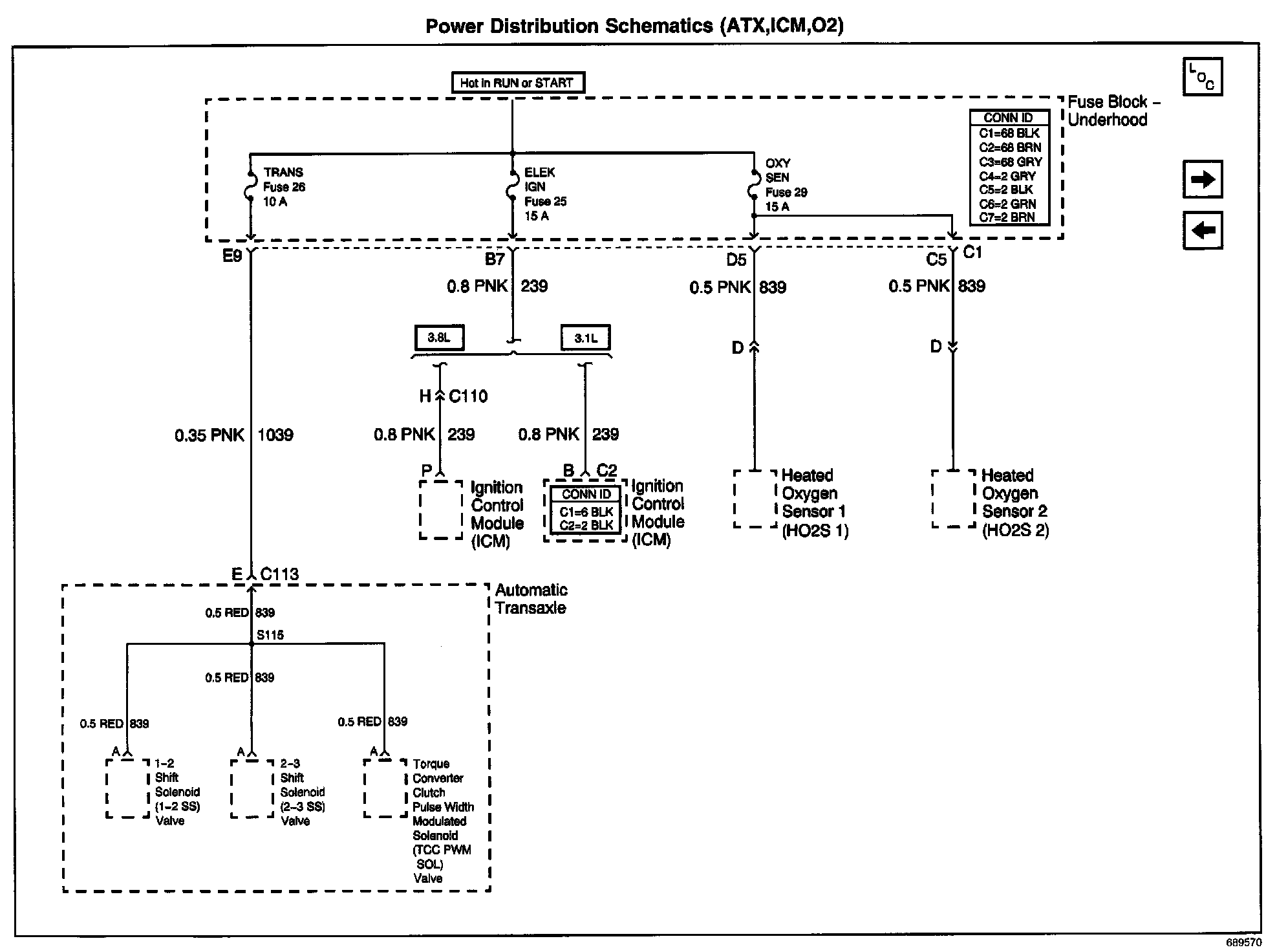

Power Distribution Schematics: ATX, ICM, O2:
