Home >> Buick >> 2001 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> STOP LAMPS

STOP LAMPS

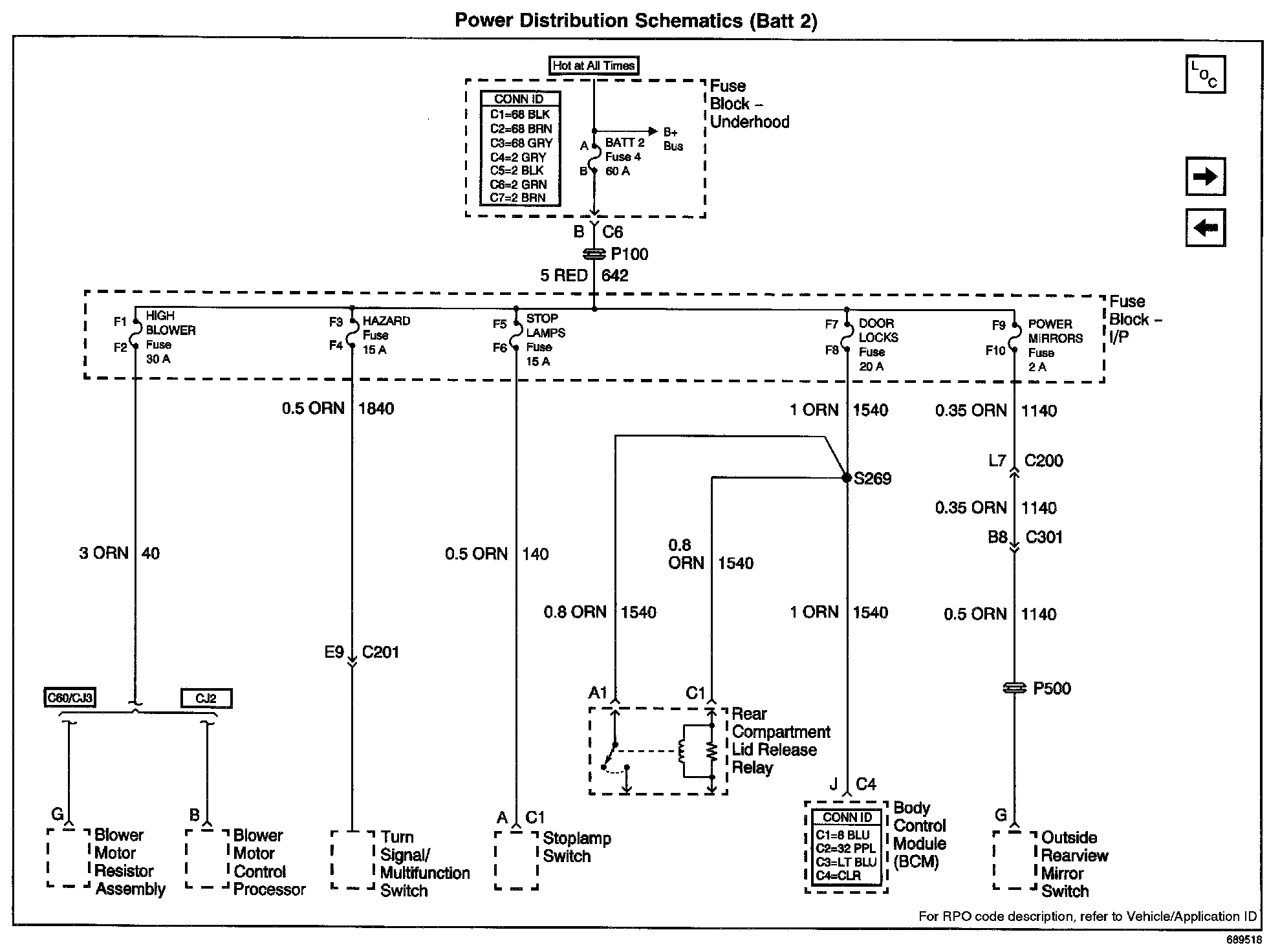

Power Distribution Schematics: Batt 2:
