Compressor Pressure Relief Valve Removal (V5 - Direct Mount)

TOOLS REQUIRED
J 41790 Compressor Holding Fixture




1. Install the compressor onto the J 41790.

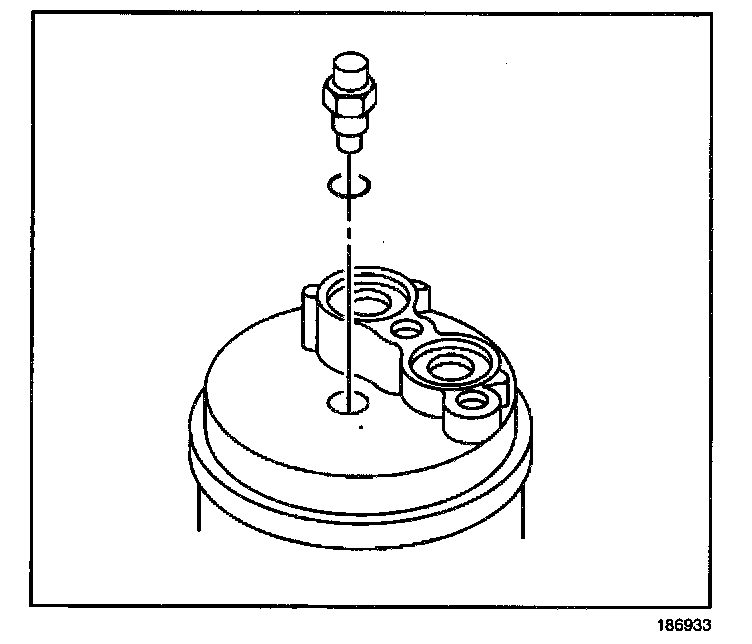

2. Remove the pressure relief valve from the rear head of the compressor.
