Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
HVAC Systems - Automatic
>>
Compressor Controls
Compressor Controls

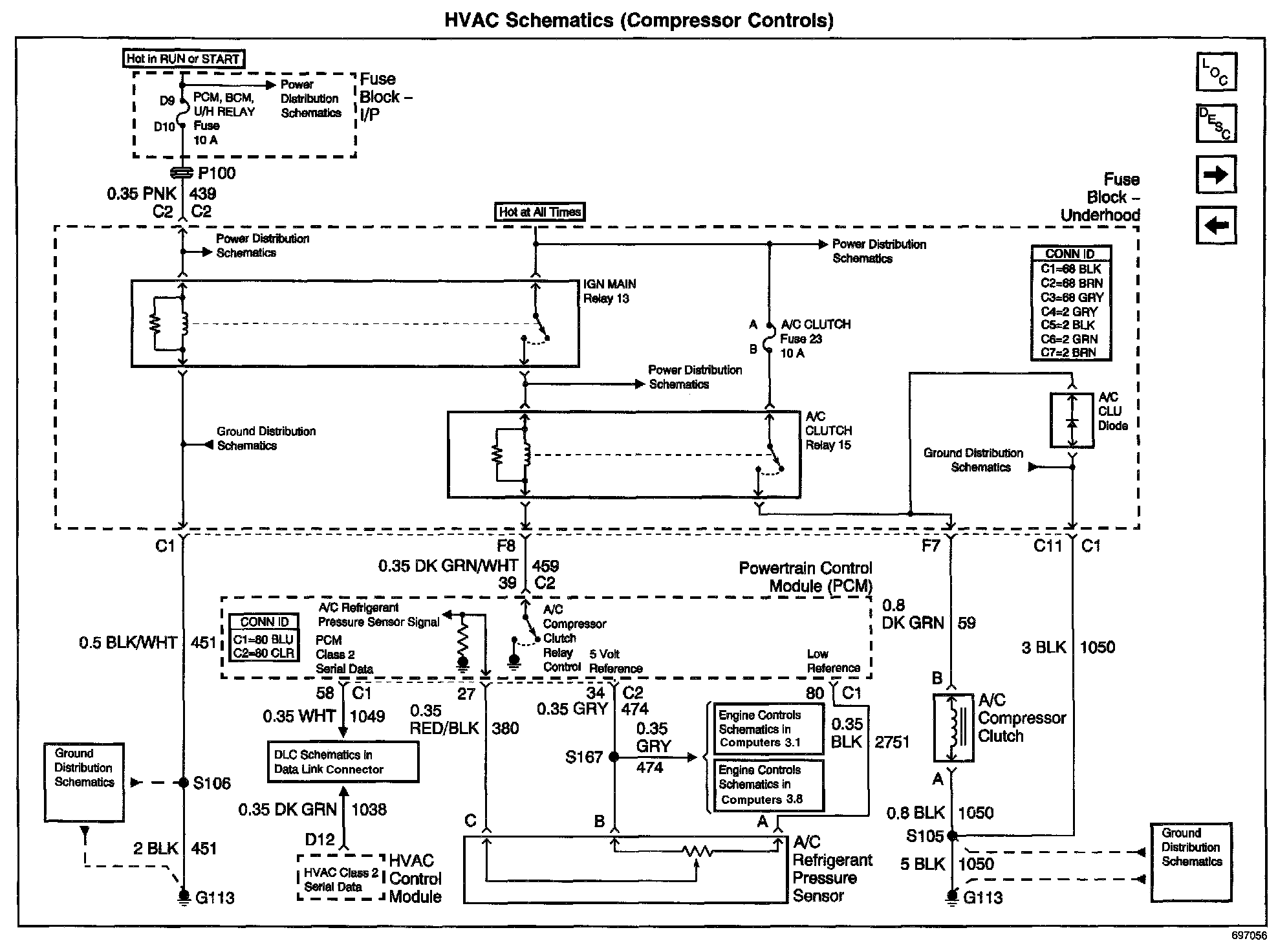

HVAC Schematics: Compressor Controls:
