IP Air Outlet Vent Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) cluster trim plate.

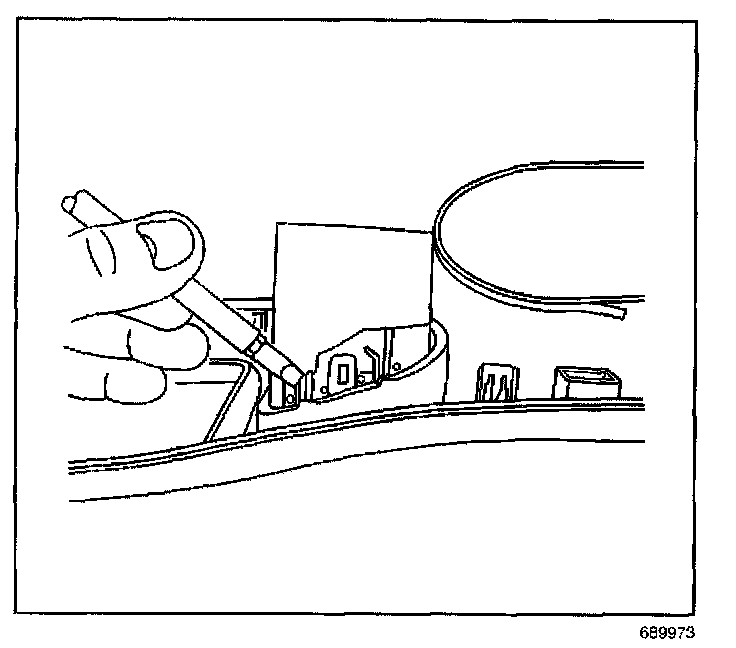

2. Use a small flat-bladed tool in order to depress the locking retainers on the top of the air outlet deflector (s).
3. Press out the instrument panel air outlet deflector(s) from the cluster trim plate.

INSTALLATION PROCEDURE

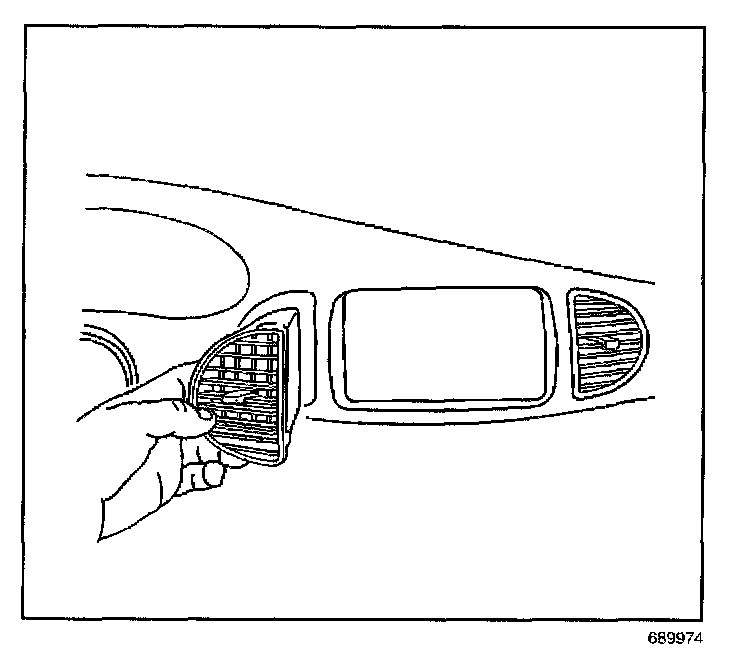

1. Position the instrument panel (IP) air outlet deflector(s) to the opening in the IP cluster trim plate.
2. Install the IP air outlet deflector(s) to the cluster trim plate until it is locked into place.
3. Inspect the IP air outlet deflector(s) for proper movement.
4. Install the IP cluster trim plate.
