Right Lower

Engine Mount Strut Bracket Replacement - Right Lower

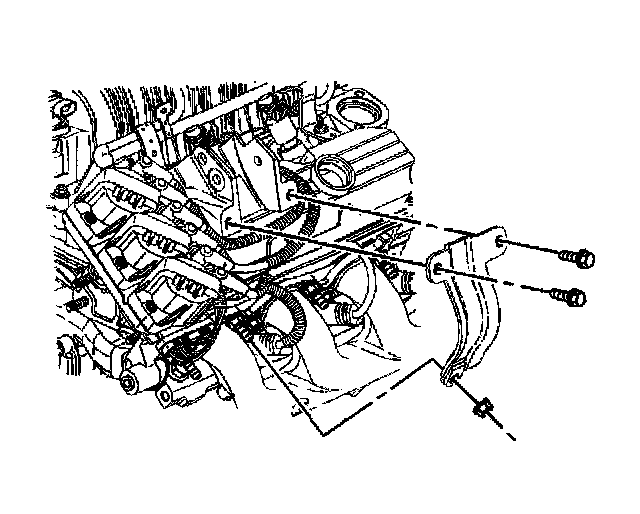

Removal Procedure

Caution Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.
2. Remove the lower engine mount strut bracket bolts.
3. Remove the lower engine mount bracket nut.
4. Remove the lower engine mount bracket.

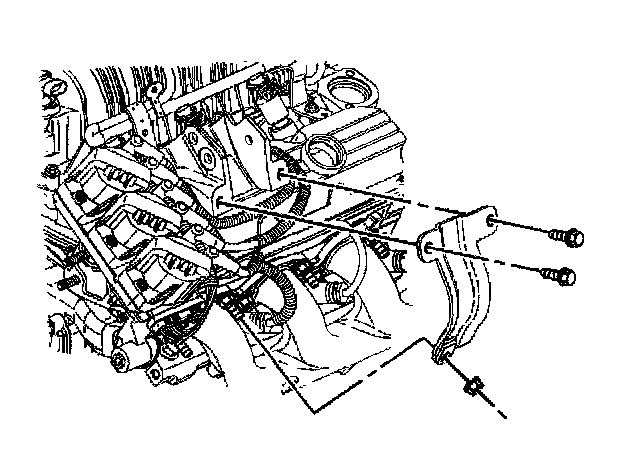

Installation Procedure





1. Install the lower engine mount bracket to the exhaust manifold stud and the upper engine mount strut bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower engine mount strut bracket bolts and nut.
- Tighten the lower engine mount bracket nut to 30 Nm (22 ft. lbs.).
- Tighten the lower engine mount bracket bolts to 50 Nm (37 ft. lbs.).
3. Connect the negative battery cable.
