Home
>>
Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Ignition Switch
Ignition Switch
Power Distribution Schematics: ING 1:

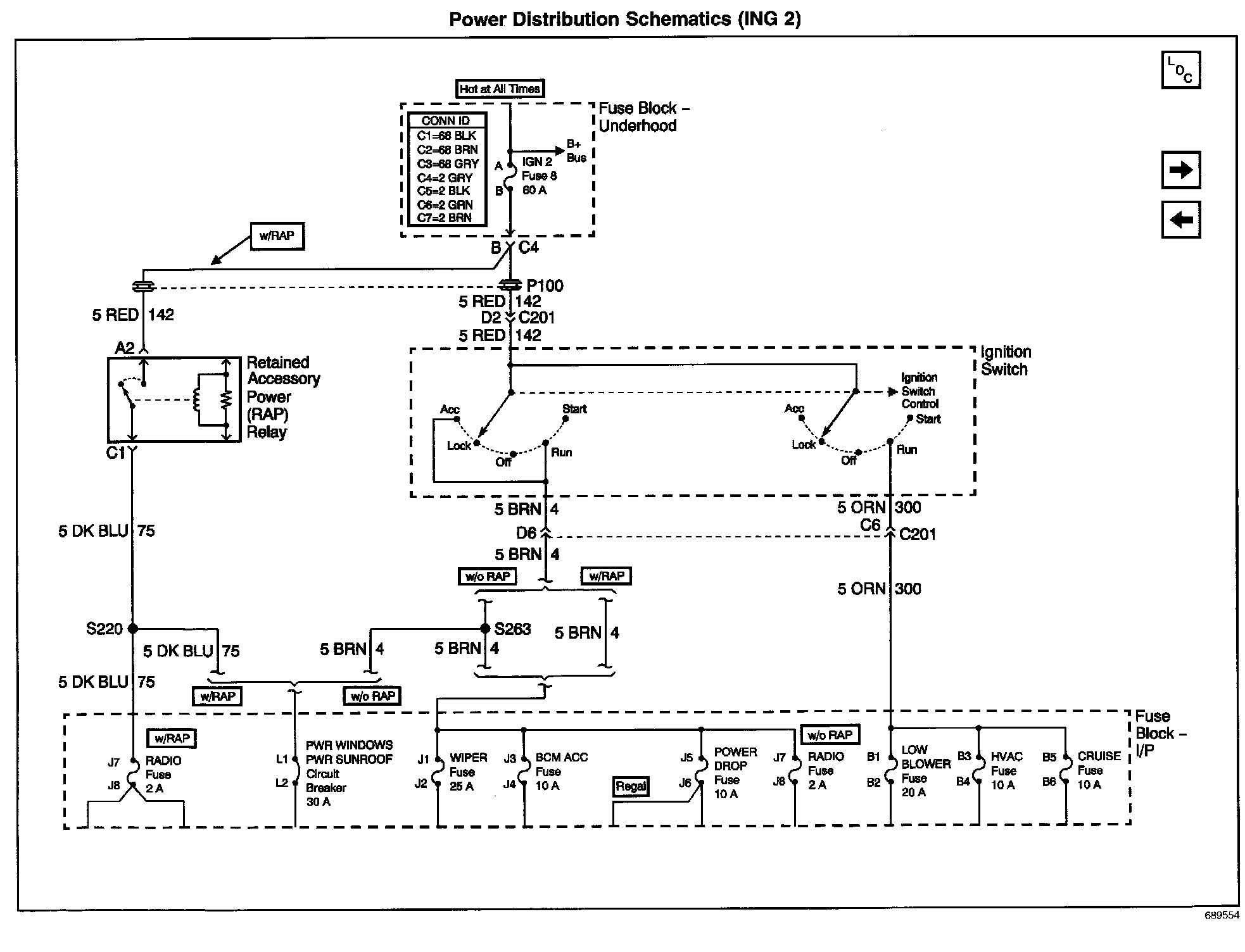

Power Distribution Schematics: ING 2:
