Bose(R) Low Level Audio Signals
Bose(R) Low Level Audio Signals

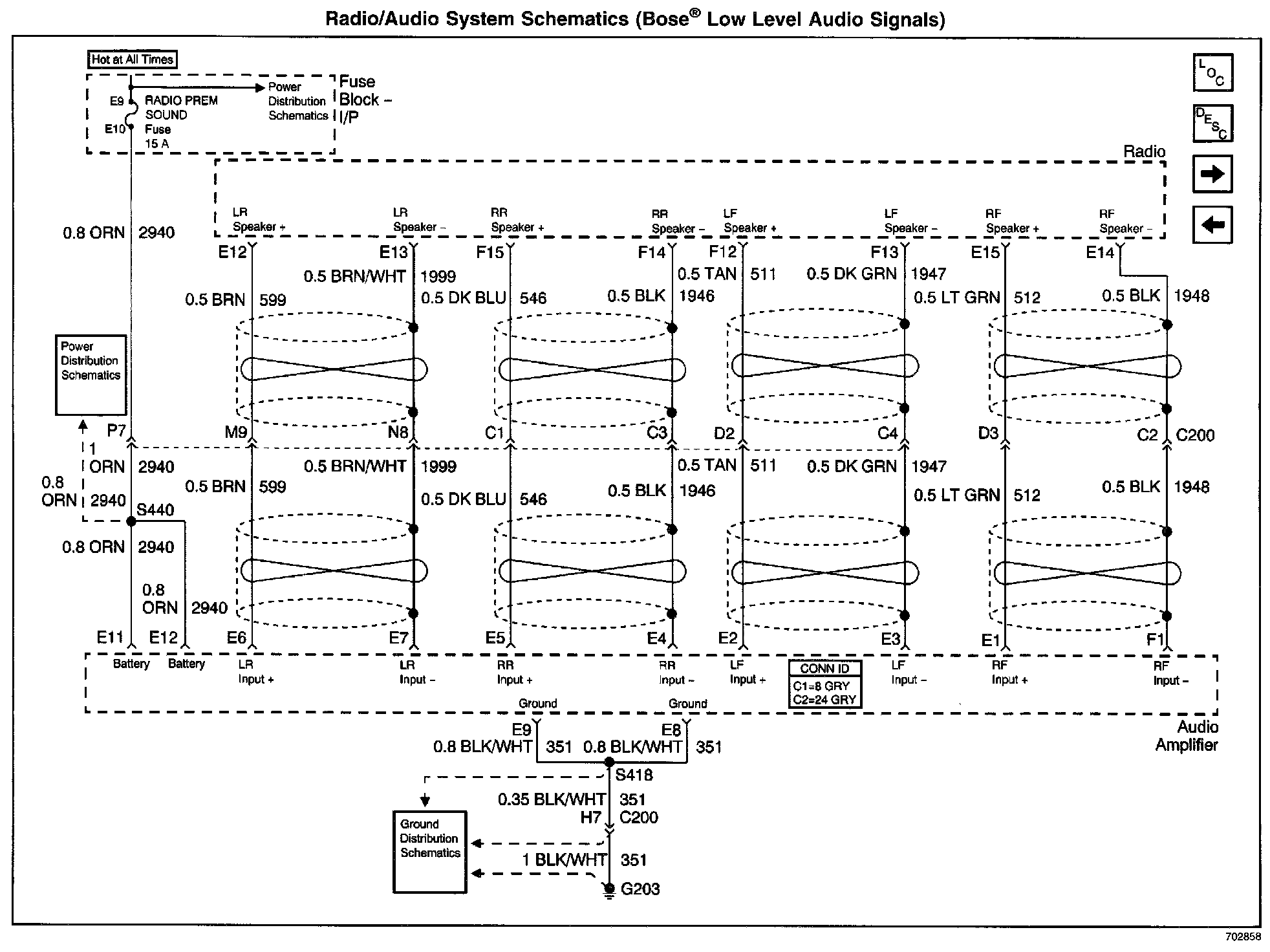

Radio/Audio System Schematics: Bose(R) Low Level Audio Signals:
