Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Fluid Pressure Sensor/Switch, A/T
Fluid Pressure Sensor/Switch, A/T

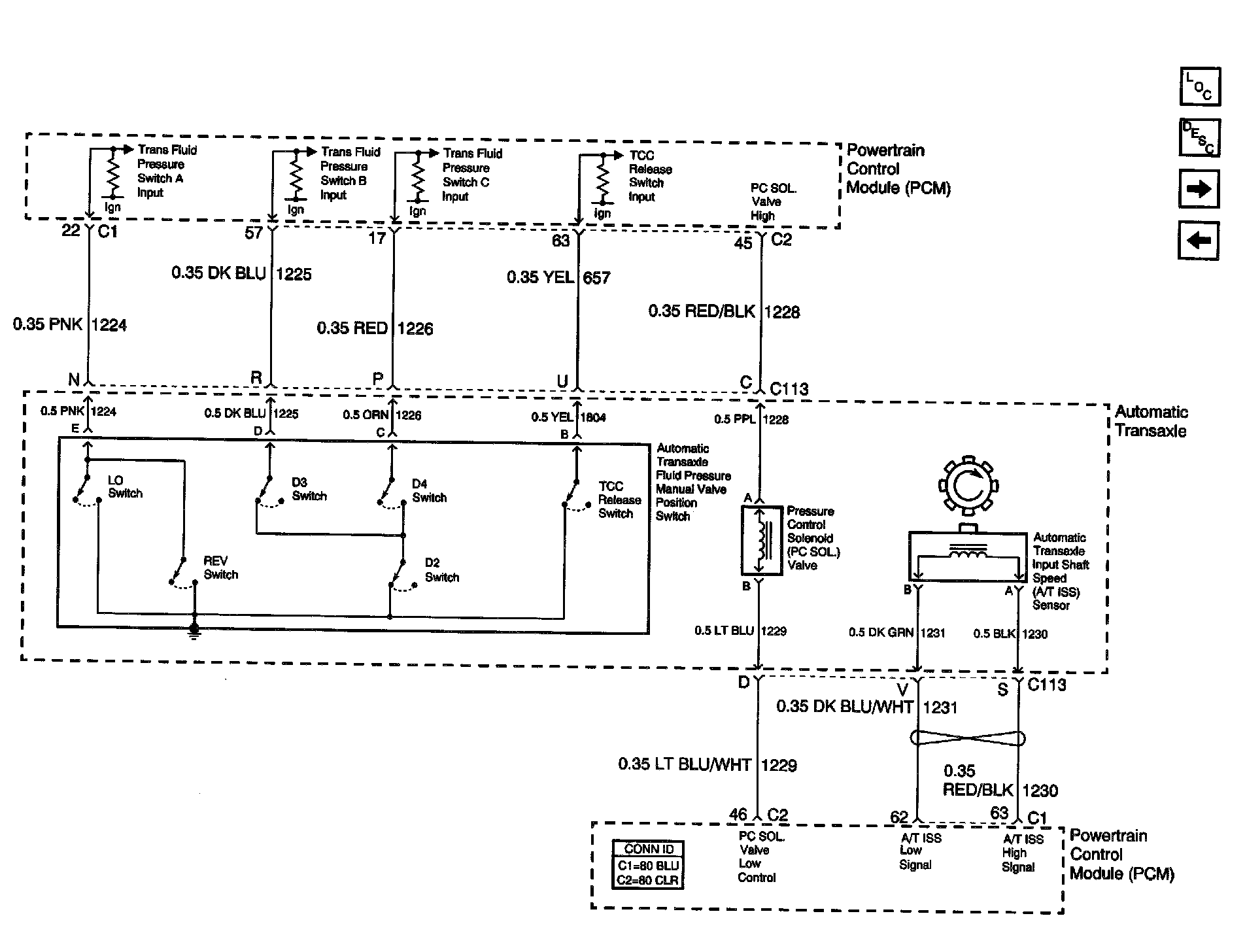

Fluid Pressure Manual Valve Position Switch and ISS Sensor:
