Speaker
>>
Speaker - LF Door Tweeter (Bose(R))
Speaker - LF Door Tweeter (Bose(R))

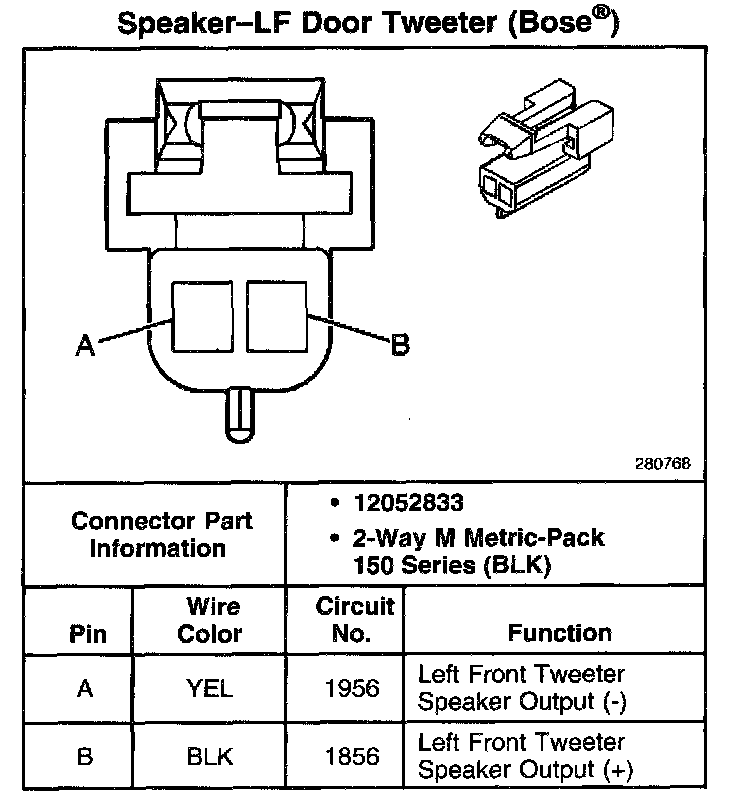

Speaker-LF Door Tweeter (Bose(R)):
