Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C400 - C499
>>
C402
C402

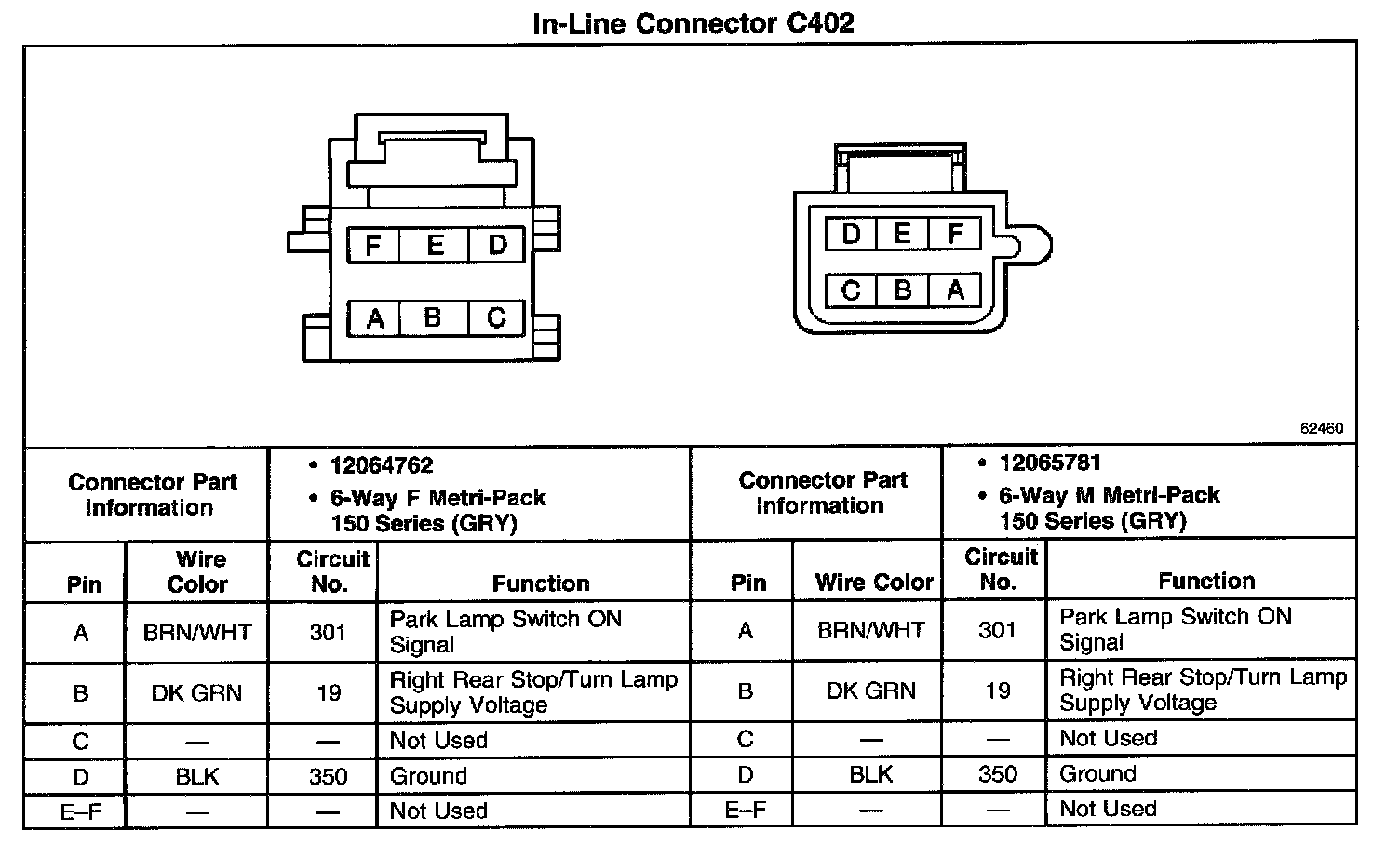

In-Line Connector C402:
