Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C200 - C299
>>
C215
C215

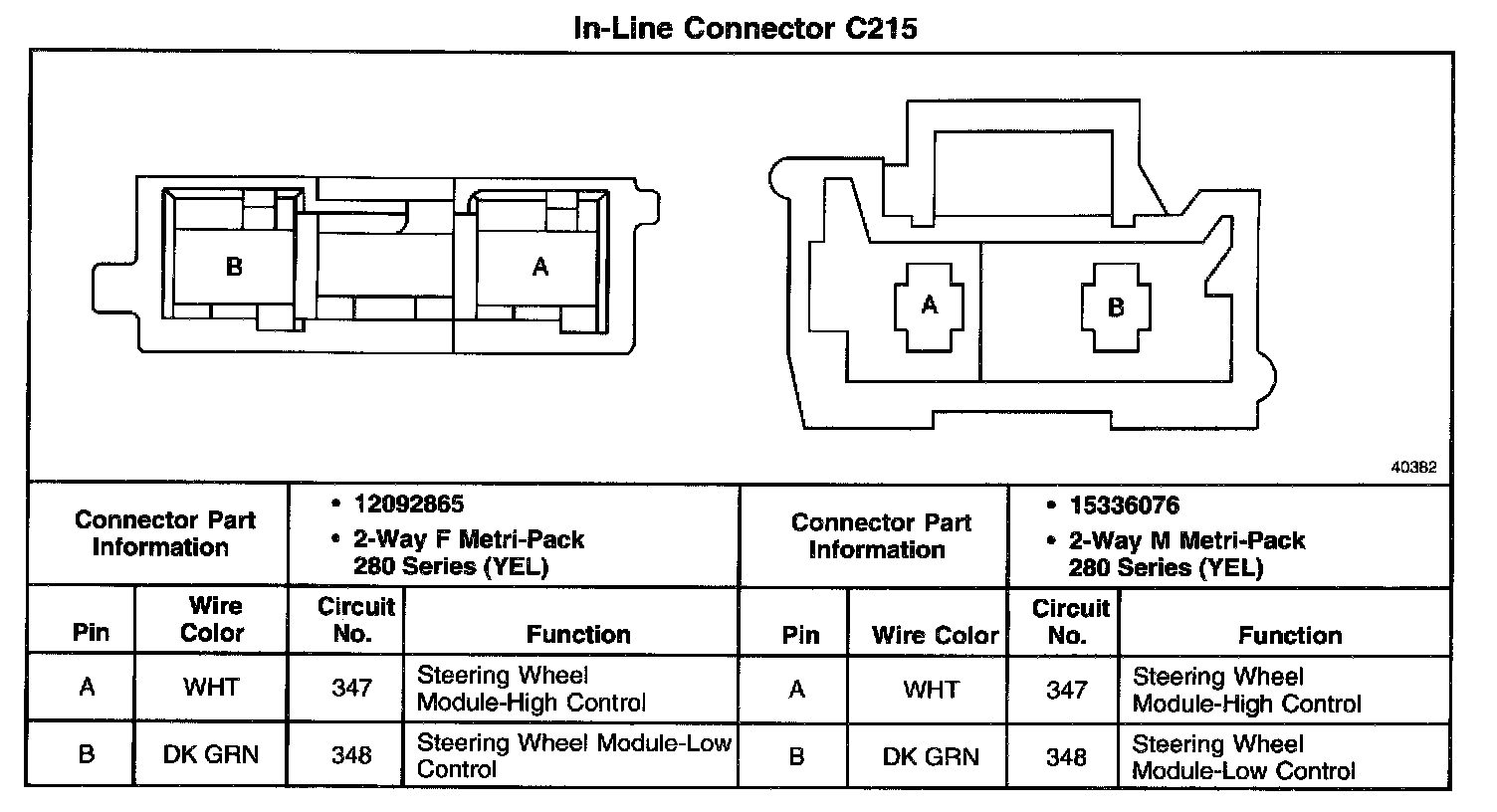

In-Line Connector C215:
