Home
>>
Buick
>>
2001
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
System Diagram
>>

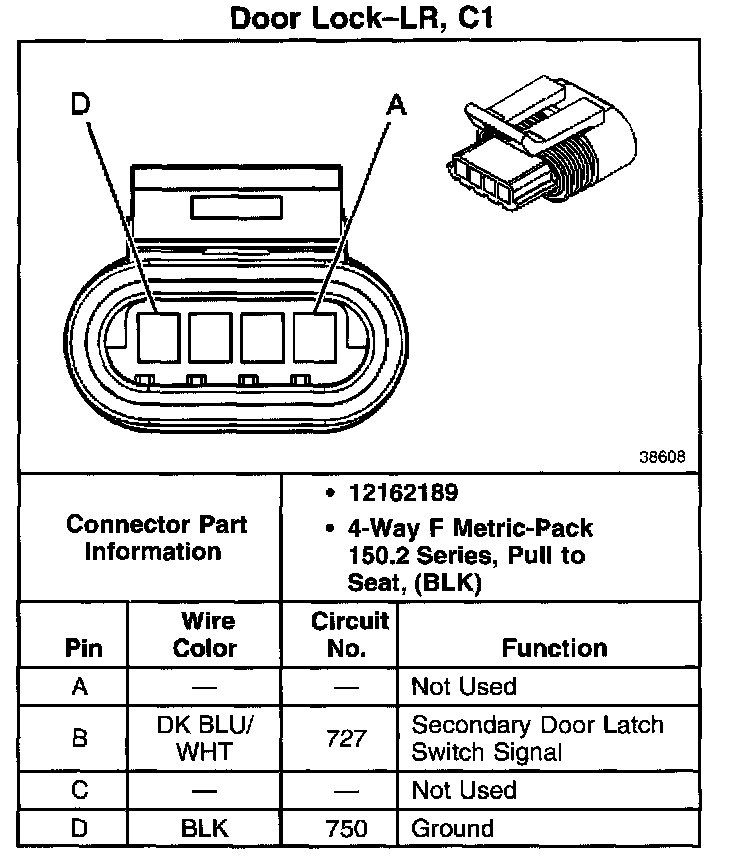

Door Lock - LR, Connector C1
Door Lock - LR, Connector C1
Door Lock-LR, C1:
