Cupholder Replacement - Front Floor Console

Front Floor Console Cup Holder Replacement

Removal Procedure





1. Remove the front floor console trim plate. Refer to Console Front Trim Plate Replacement (Console Front Trim Plate Replacement) .

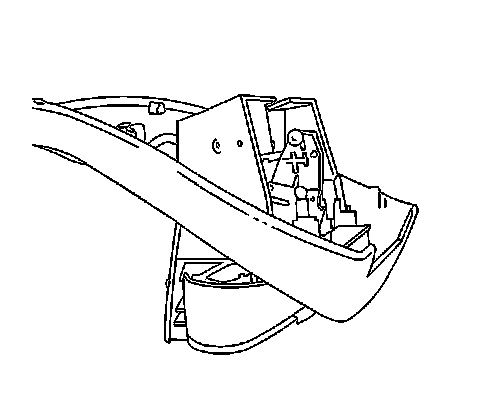

2. Drill out the riviets from the pivot points.
3. Remove the cupholder from the front floor console trim plate.



Installation Procedure





1. Position the cupholder to the front floor console trim plate.
2. Install the new rivets and flat washers to the pivot points.
3. Inspect the cupholder for proper operation.
4. Install the front floor console trim plate. Refer to Console Front Trim Plate Replacement (Console Front Trim Plate Replacement) .
