Front End Fascia Deflector Replacement

Front End Fascia Deflector Replacement

Removal Procedure





1. Raise and support the vehicle. Refer toLifting and Jacking the Vehicle in General Information.

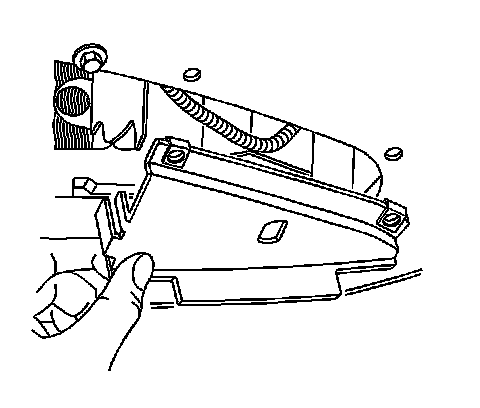

2. Remove the front fascia deflector bolts.




3. Remove the front fascia deflector from the vehicle.



Installation Procedure





1. Position the front fascia deflector to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the front fascia deflector bolts.

Tighten the front fascia deflector bolts to 4 N.m (35 lb in).

3. Lower the vehicle.
