Front Bumper Fascia Support Replacement

Front Bumper Fascia Support Replacement

Removal Procedure

1. Remove the front fender liners. Refer to Front Fender Liner Replacement (Service and Repair) in Body Front End.

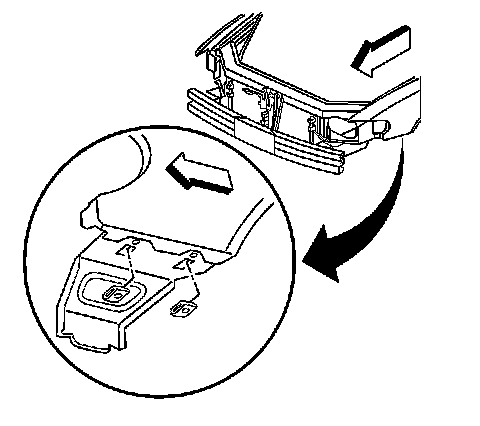

2. Remove the bolts from the front bumper fascia side supports at the bottom of the fender.
3. Remove the bolts from the front bumper fascia side supports at the radiator support.
4. Remove the front bumper fascia side supports from the front bumper fascia.



Installation Procedure





1. Install the front bumper fascia side supports to the front bumper fascia.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the front bumper fascia side support to radiator support bolts.

Tighten the bolts to 10 N.m (88 lb in).

3. Install the bolts from the front bumper fascia side support to the bottom of the fender.

Tighten the bolts to 10 N.m (88 lb in).

4. Install the front fender liners. Refer toFront Fender Liner Replacement (Service and Repair) in Body Front End.
