Speaker Replacement - Front Door

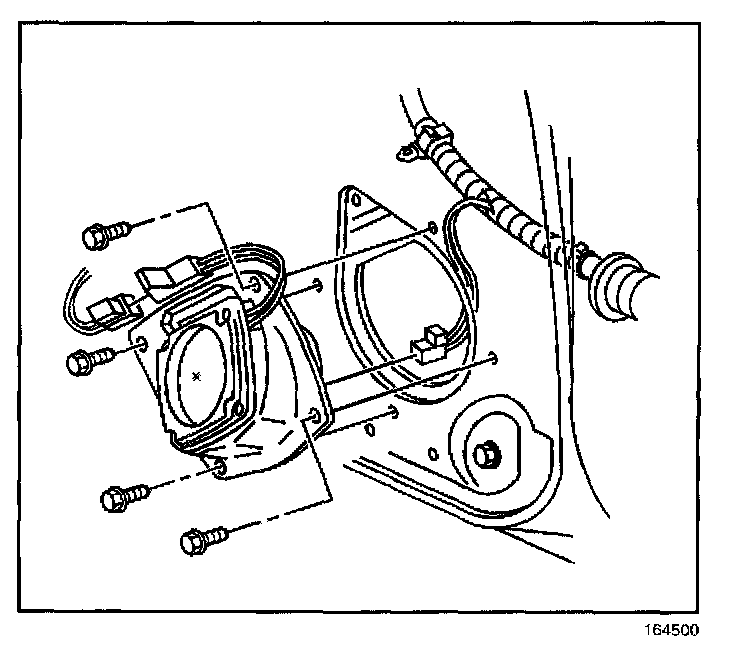

REMOVAL PROCEDURE




1. Remove the front door inner trim panel.
2. Remove the front door speaker retaining screws.
3. Disconnect the electrical connector from the front door speaker.
4. Remove the speaker from the front door.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the front door speaker.
2. Install the speaker to the front door.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the front door speaker retaining screws.

Tighten
Tighten the front door speaker retaining screws to 2 N.m (18 lb in).

4. Install the front door inner trim panel.
