Speaker Replacement - Front

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the screws from the front speaker.

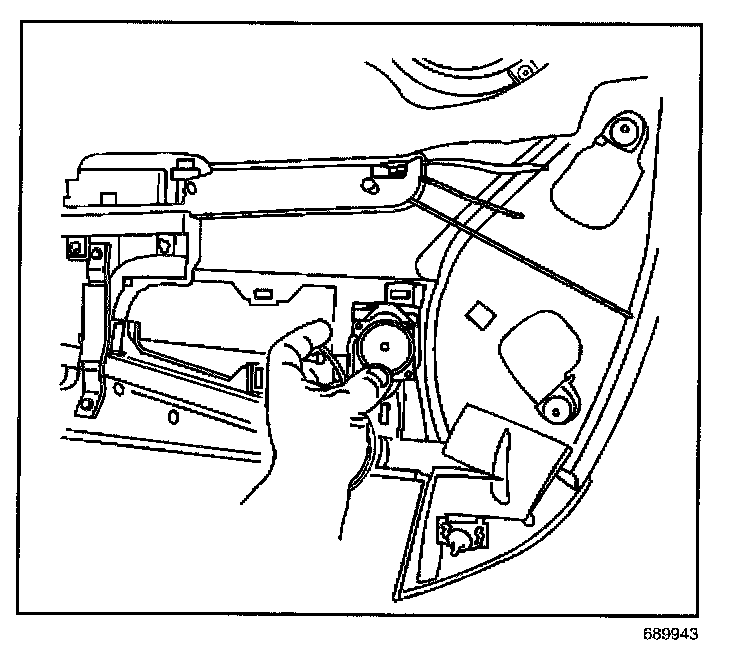

3. Remove the front speaker from the door panel by sliding out from the retainers.

INSTALLATION PROCEDURE

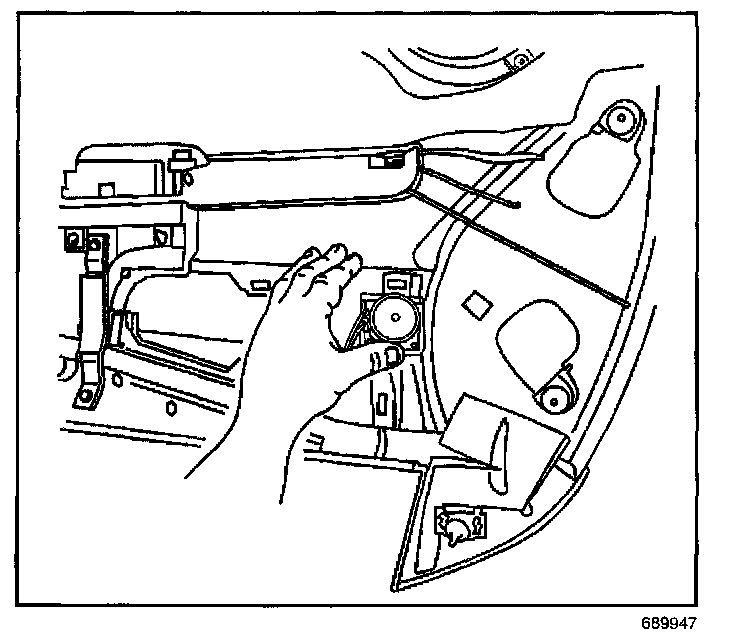

1. Align the front speaker to the retainers on the front door trim panel.




2. Press the front speaker into the speaker retainers until fully seated.

NOTE: Refer to Fastener Notice in Service Precautions.

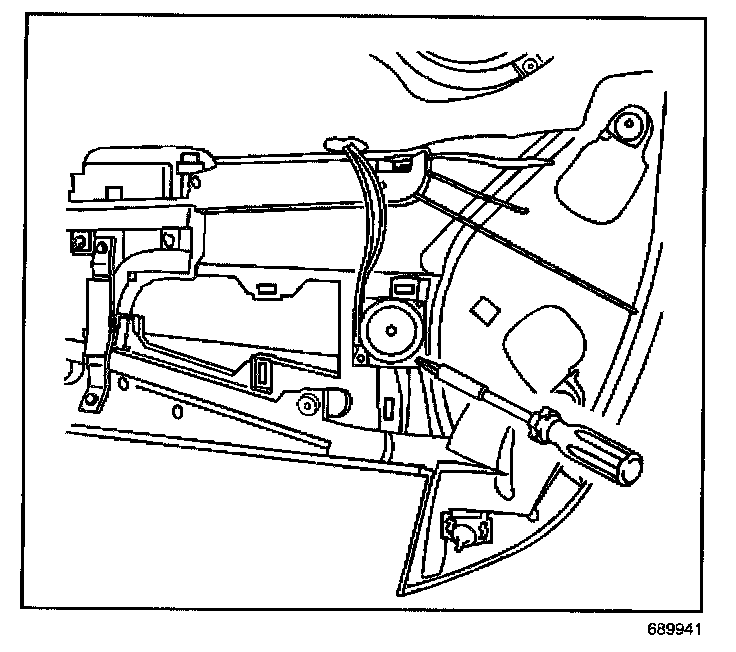

3. Install the screws to the front speaker.

Tighten
Tighten the front door speaker retaining screws to 2 N.m (18 lb in).

4. Install the front door trim panel.
