Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement
Removal Procedure





1. Remove the throttle body air inlet duct.

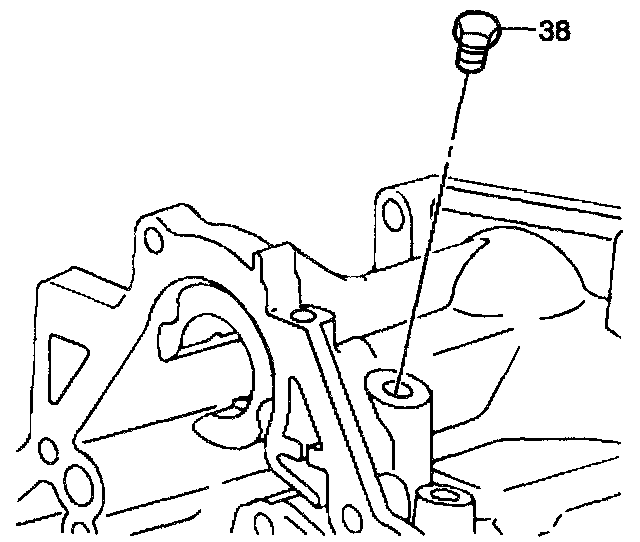

2. Remove the oil pressure test plug (38).

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

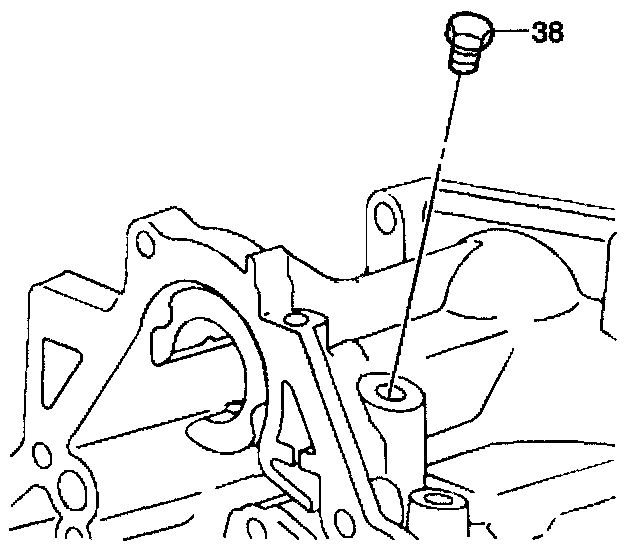

1. Install the line pressure pipe plug (38).
- Tighten the line pressure pipe plug (38) to 12 Nm (106 inch lbs.).
2. Install the throttle body air inlet duct.
