Automatic Transmission Mount Bracket Replacement - Front
Automatic Transmission Mount Bracket Replacement - FrontRemoval Procedure

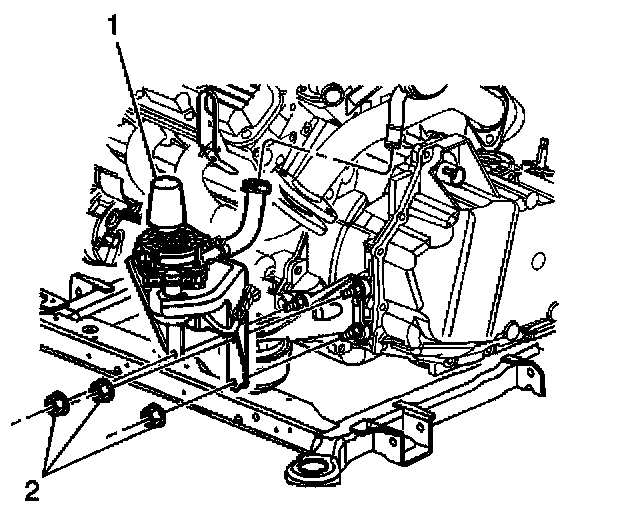

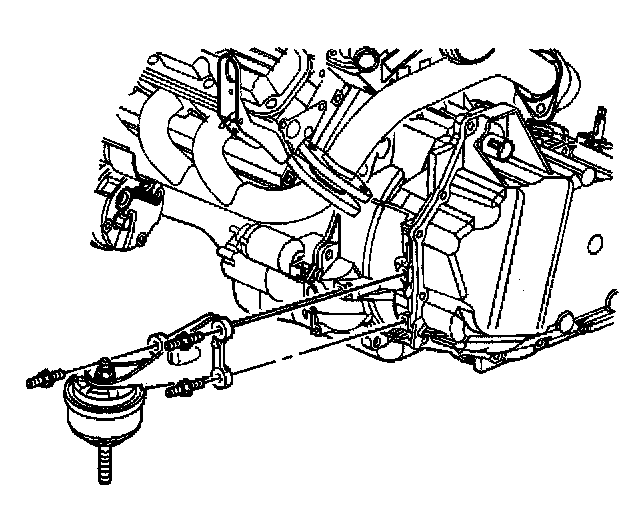

1. Remove the three attaching nuts (2) from the A.I.R. pump.
2. Position aside the A.I.R. pump.
3. Raise and support the vehicle. Refer to Vehicle Lifting.
4. Remove the three bolts securing the front transmission bracket to the transmission.
5. Remove the nut from the top of the transmission mount.
6. Lower the vehicle.
7. Remove the front transmission bracket from the vehicle.
Installation Procedure

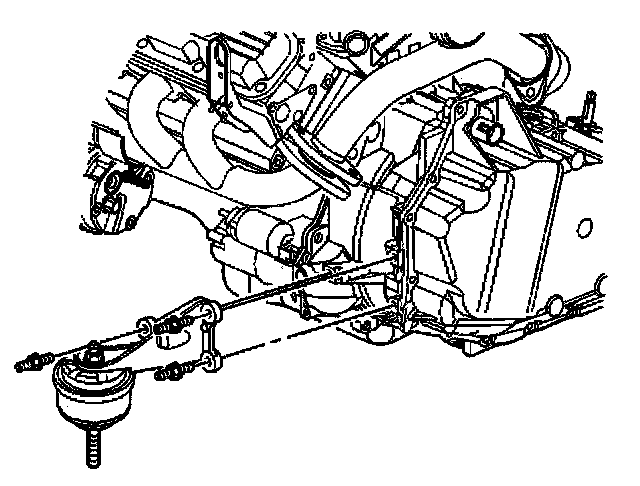

1. Install the front transmission bracket to the transmission.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the three bolts securing the front transmission bracket to the transmission.
- Tighten the front transmission bracket bolts to 58 Nm (42 ft. lbs.).
4. Install the A.I.R. pump to the transmission bracket.
5. Install the three nuts (2) to A.I.R. pump.
- Tighten the A.I.R. pump bracket to 50 Nm (36 ft. lbs.).
6. Lower the vehicle.
7. Install the top transmission mount nut.
- Tighten transmission mount nut nut to 80 Nm (59 ft. lbs.).
