Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
F/PMP
F/PMP

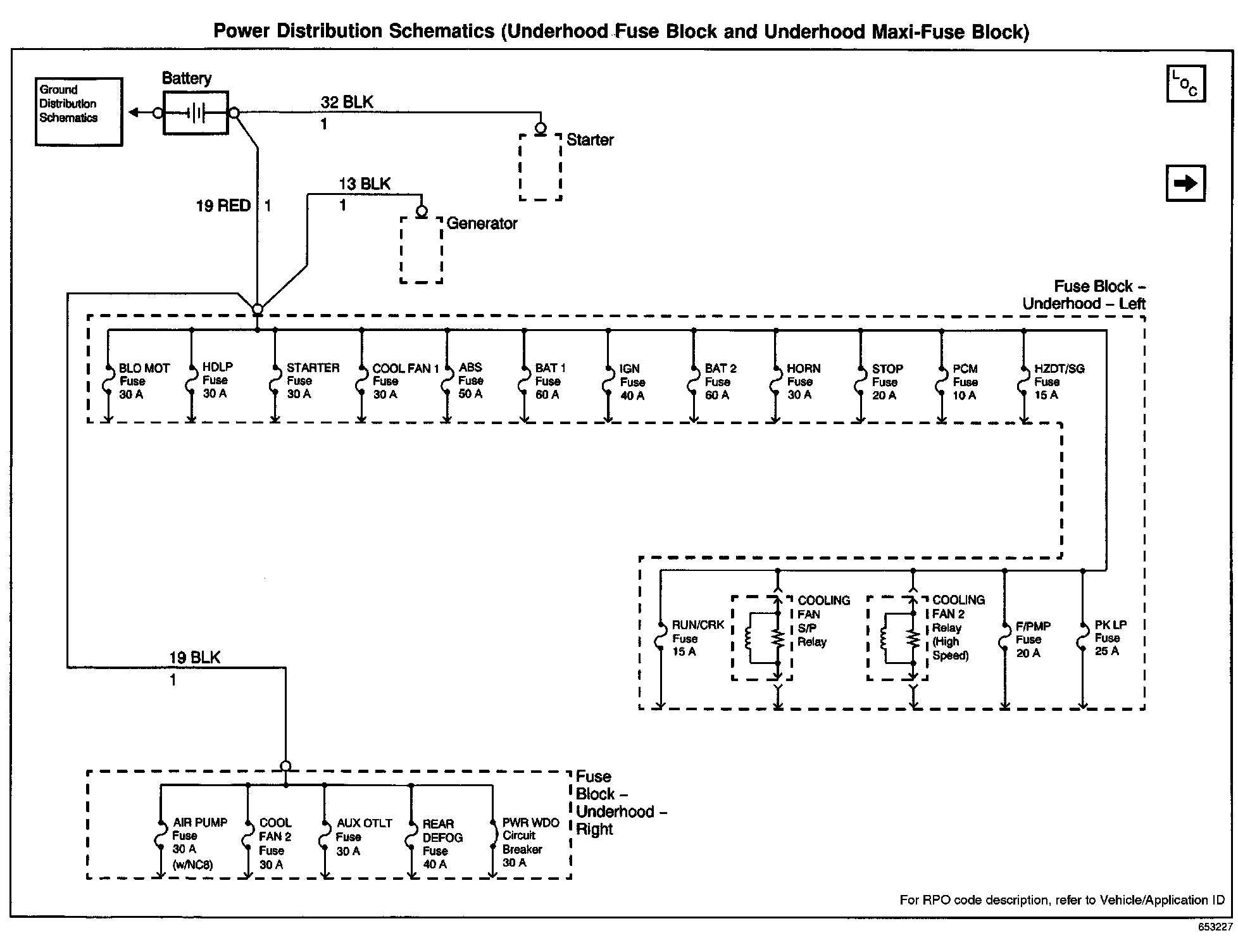

Power Distribution Schematics: Underhood Fuse Block And Underhood Maxi-Fuse Block:
