Home
>>
Buick
>>
2001
>>
Park Avenue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Power Locks
>>
Door Lock/Indicator Schematics
>>
Rear Power Door Lock Components
Rear Power Door Lock Components

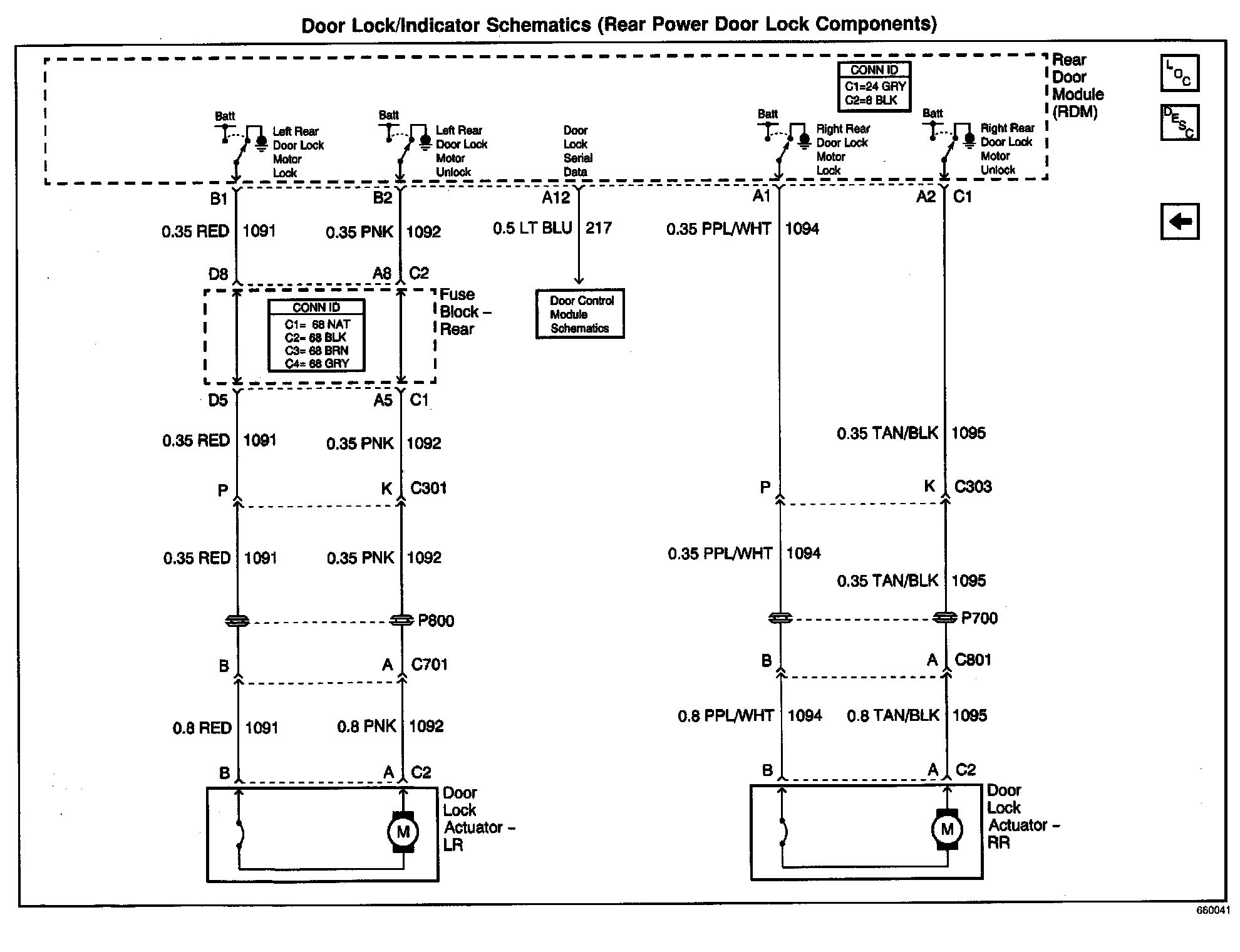

Door Lock/Indicator Schematics: Rear Power Door Lock Components:
