Door Control Module Schematics
>>
Rear Door Module
Rear Door Module

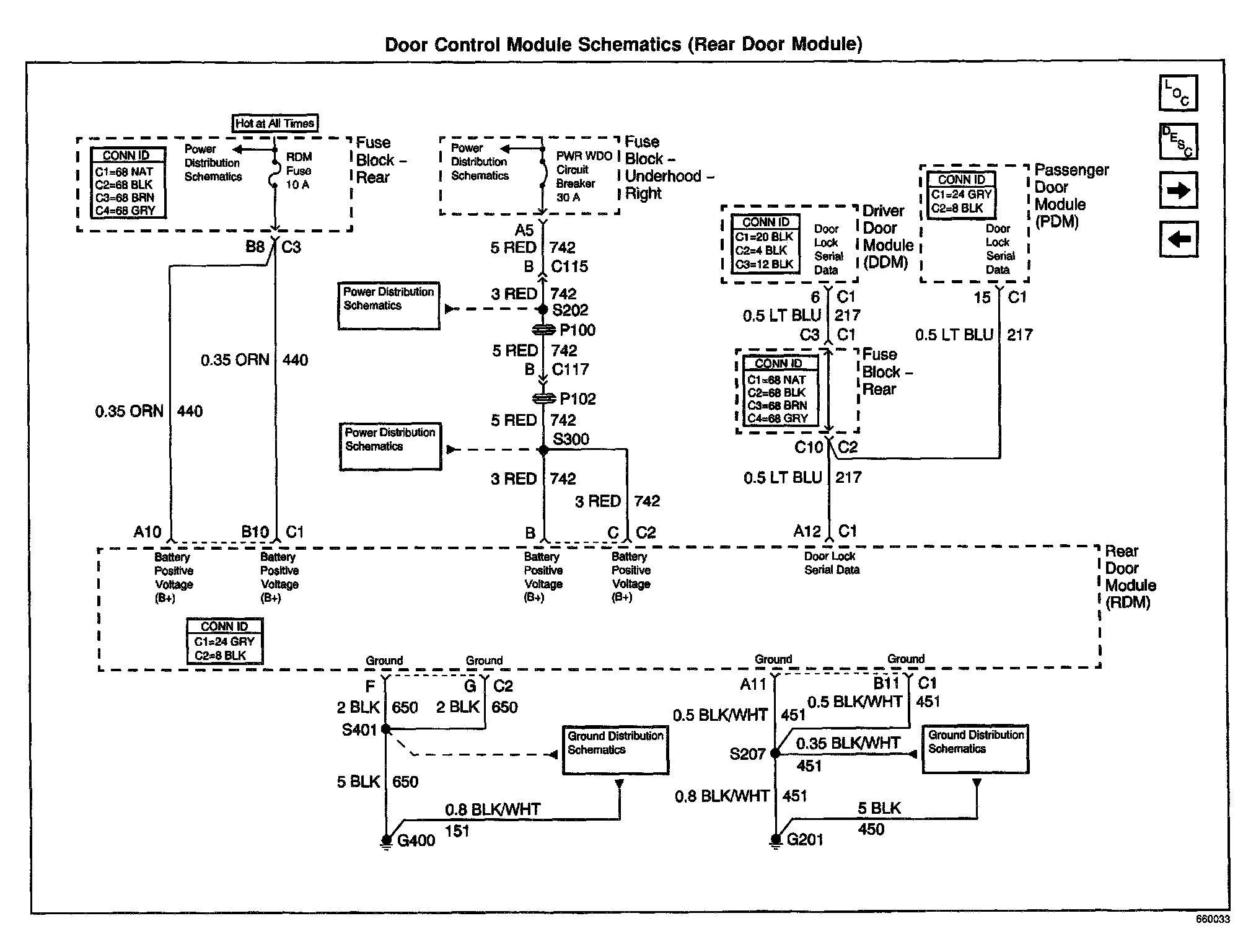

Door Control Module Schematics: Rear Door Module:
