Steering Wheel Control Switches Replacement
STEERING WHEEL CONTROL SWITCHES REPLACEMENTREMOVAL PROCEDURE
1. Remove the steering wheel.

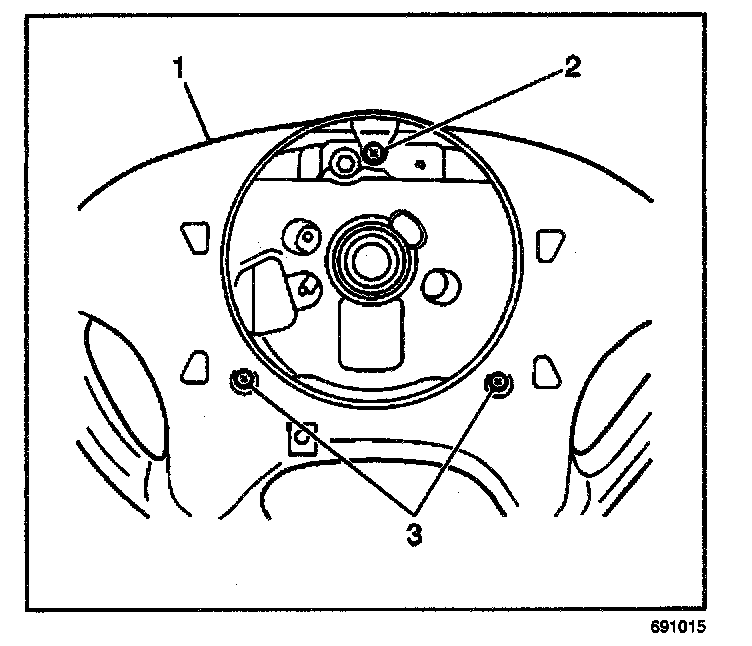

2. Remove the 3 fasteners (2, 3) securing the rear cover (1).
3. Remove the rear cover (1).
4. Disconnect the electrical connector.

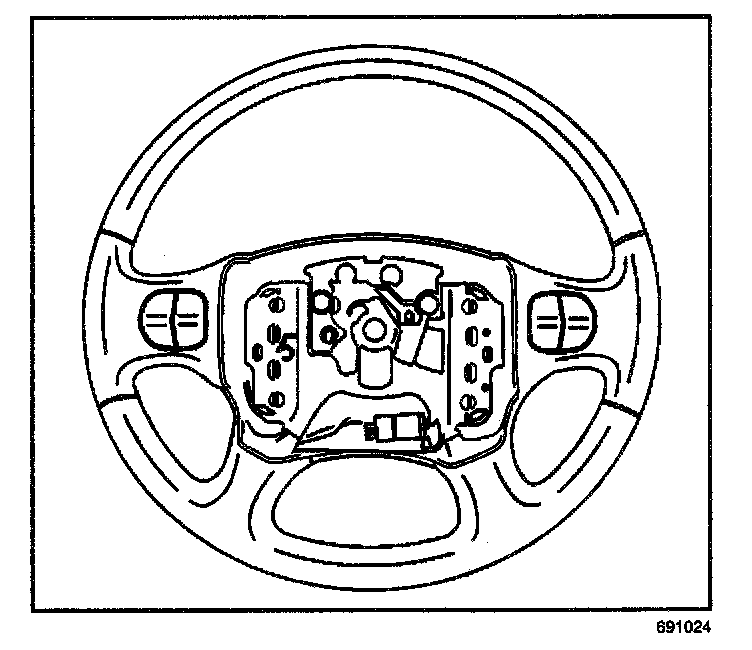

5. Use a small blade tool in order to remove the control switch from the steering wheel.
INSTALLATION PROCEDURE
1. Reconnect the electrical connector.
2. Install the steering control switch.
3. install the steering wheel rear cover.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the rear cover fasteners to 3 N.m (26.5 lb in).
4. Install the steering wheel.
