Center

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the seat back.

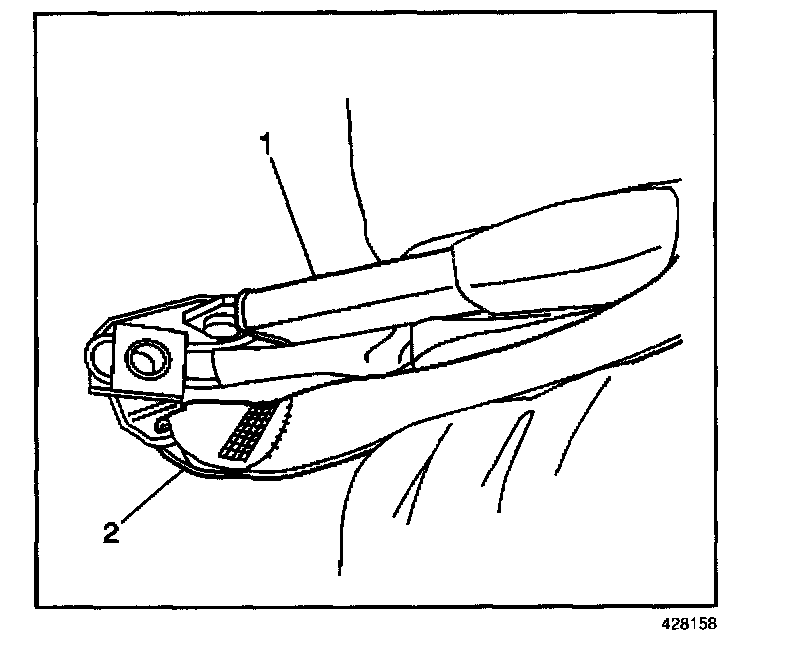

3. Remove the belt assembly (2) from the seat back anchor.

INSTALLATION PROCEDURE




1. Install the belt assembly (2) to the seat back anchor.
2. Install the seat back.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the anchor nuts.

Tighten
Tighten nuts to 41 N.m (30 lb ft).

4. Install the rear seat cushion.
