Left Front

REMOVAL PROCEDURE




1. Remove the seat assembly.
2. Use the following steps in order to remove the inside trim panel:
2.1. Pull the inside trim panel outward.
2.2. Release the three retainer clips.
2.3. Remove the inside trim panel.
3. Disconnect the electrical connector.

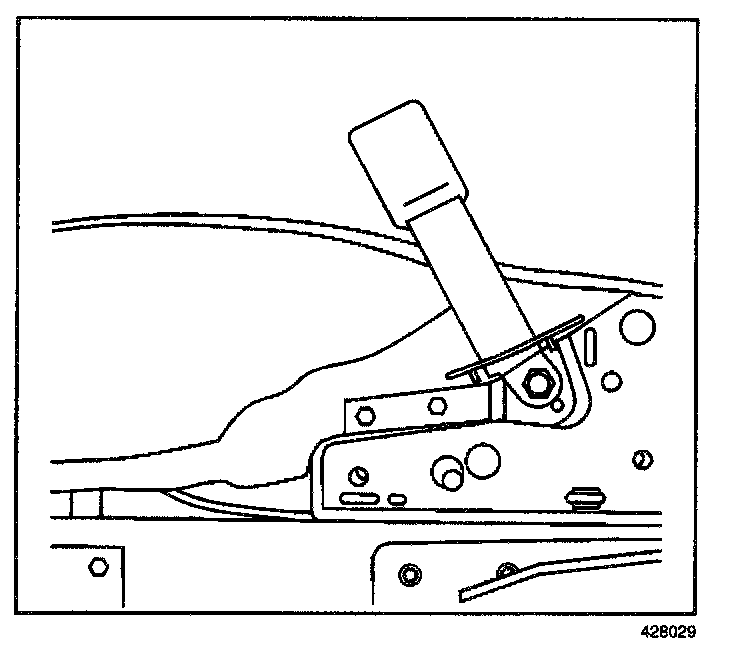

4. Remove the buckle assembly retaining nut.
5. Remove the inner buckle assembly.

INSTALLATION PROCEDURE




1. Install the inner buckle assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the nut.

Tighten
Tighten the nut to 41 N.m (30 lb ft).

3. Connect the electrical connector.
4. Install the inside trim panel.
5. Install the seat assembly.
