Inflatable Restraint Instrument Panel Module Replacement

REMOVAL PROCEDURE

CAUTION: Refer to SIR Inflator Module Handling And Storage Caution in Service Precautions.




1. Disable the SIR system. Refer to Disabling the SIR System. Disabling

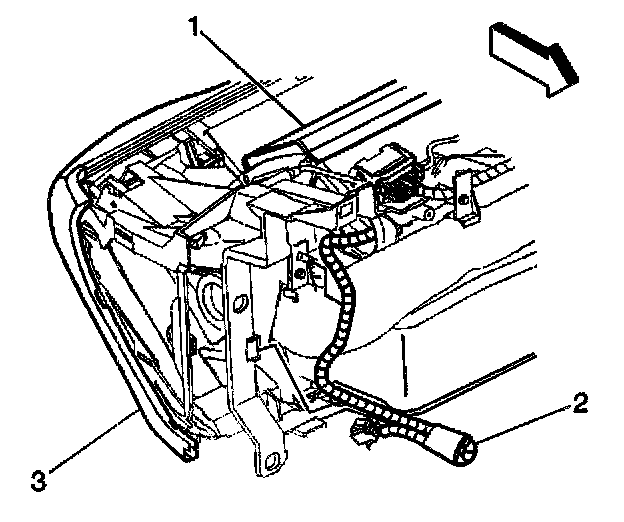

2. Remove the inflatable restraint IP module yellow 2-way connector (2) from the vehicle harness yellow 2-way connector (1).
3. Remove the inflatable restraint IP module yellow 2-way connector (2) from the IP bracket (3).




4. Remove the IP upper trim pad.
5. Note the inflatable restraint IP module wire harness routing position in order to assist in re-assembly.
6. Push the inflatable restraint IP module yellow 2-way connector (2) back away from the IP (3).

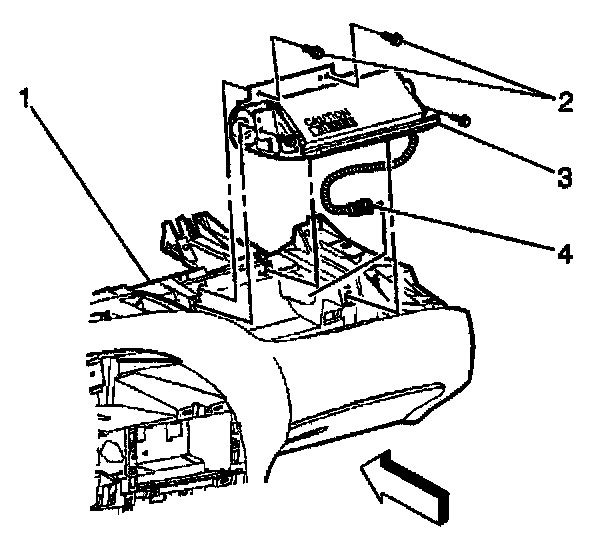

7. Remove the inflatable restraint IP module mounting fasteners (2).

IMPORTANT: When removing the inflatable restraint IP module (3), do not damage the inflatable restraint IP module pigtail (4).

8. Remove the inflatable restraint IP module (3) from the IP (1).

INSTALLATION PROCEDURE

IMPORTANT: When installing the inflatable restraint IP module (3), do not damage the inflatable restraint IP module pigtail (4).




1. Route the inflatable restraint IP module pigtail (4) down through the IP (1).
2. Install the inflatable restraint IP module (3) to the instrument panel (1).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the inflatable restraint IP module mounting fasteners (2).

Tighten
Tighten the fasteners to 9 N.m (80 lb in).




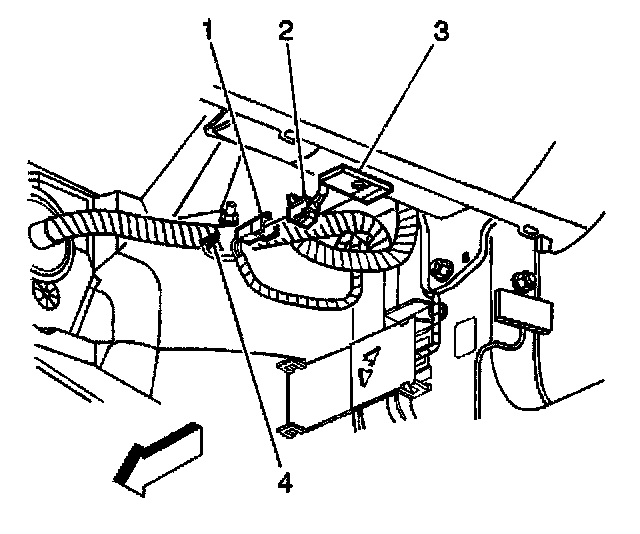

4. Route the inflatable restraint IP module wiring harness (2) in place in order to secure the inflatable restraint IP module yellow 2-way connector clip to the instrument panel (3).
5. Install the IP upper trim pad.




6. Clip the inflatable restraint IP module yellow 2-way connector (2) to the IP bracket (3).
7. Install the inflatable restraint IP module yellow 2-way connector (2) to the vehicle harness yellow 2-way connector (1).
8. Install the Connector Position Assurance (CPA) (4) to the inflatable restraint instrument panel (IP) module connector (2).
9. Install the passenger (right) insulator panel.
10. Enable the SIR system. Refer to Enabling the SIR System. Enabling
