EVAP Hoses/Pipes Replacement - Engine

REMOVAL PROCEDURE

NOTE: Do Not attempt to repair the EVAP pipes or the connecting hoses. Replace the damaged EVAP pipes or the connecting hoses are damaged. If the nylon EVAP pipe becomes kinked and cannot be straightened, it must be replaced.




1. Remove the fuel injector sight shield.

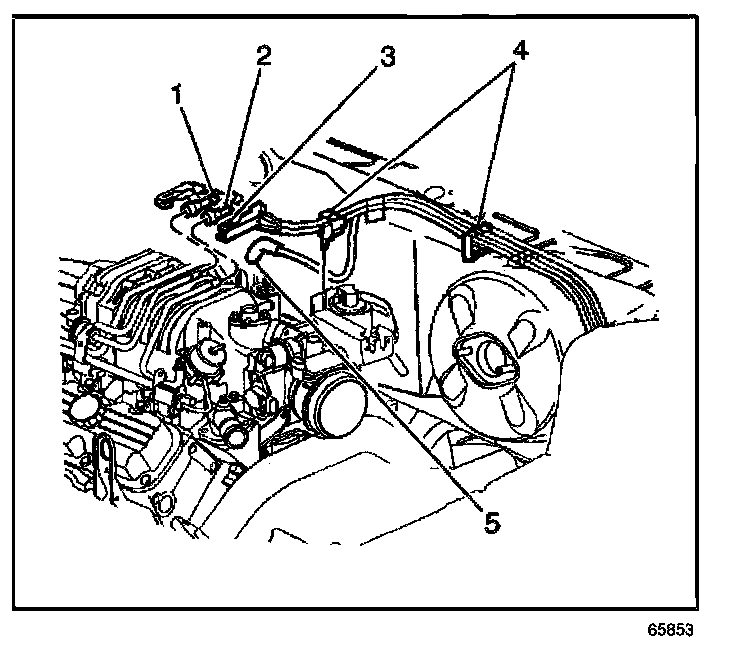

2. Remove the hardware retaining the EVAP pipe/hose (4).
3. Inspect the location of the attaching hardware for installation.
4. Remove the EVAP pipe/hose (5).
5. Inspect the pipe/hose for bends, kinks, and cracks.
6. Replace the pipes/hose as required.

INSTALLATION PROCEDURE

NOTE: Refer to Properly Secured Evaporative Emission (EVAP) Pipe Notice in Service Precautions.

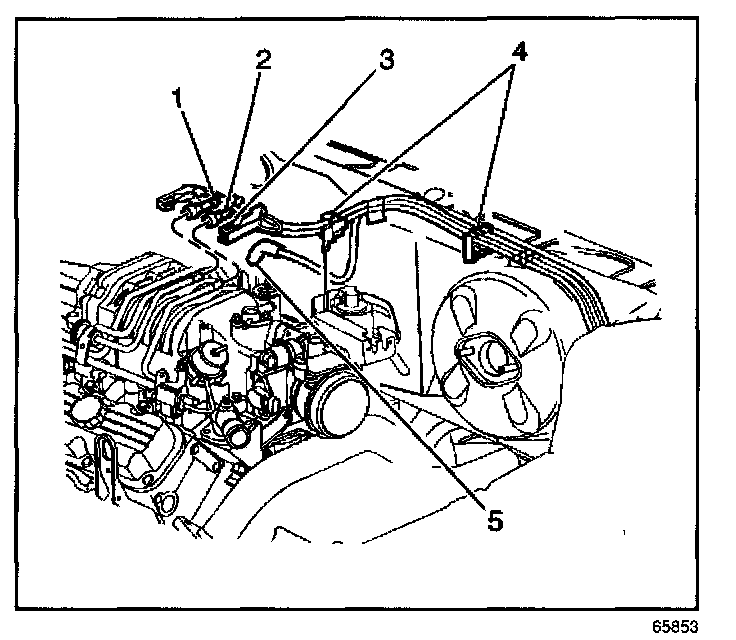

1. Install the EVAP pipe/hose (5).
2. Install the hardware retaining the EVAP pipe/hose (4).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the fuel injector sight shield.
