Compressor Hose Assembly Replacement
TOOLS REQUIREDJ 39400-A Halogen Leak Detector
1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.

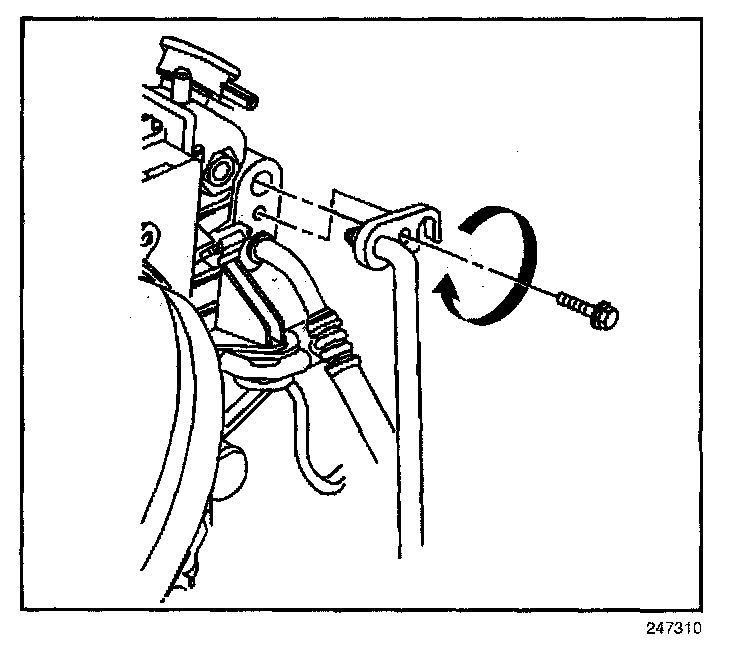

2. Remove the evaporator A/C compressor hose clip.

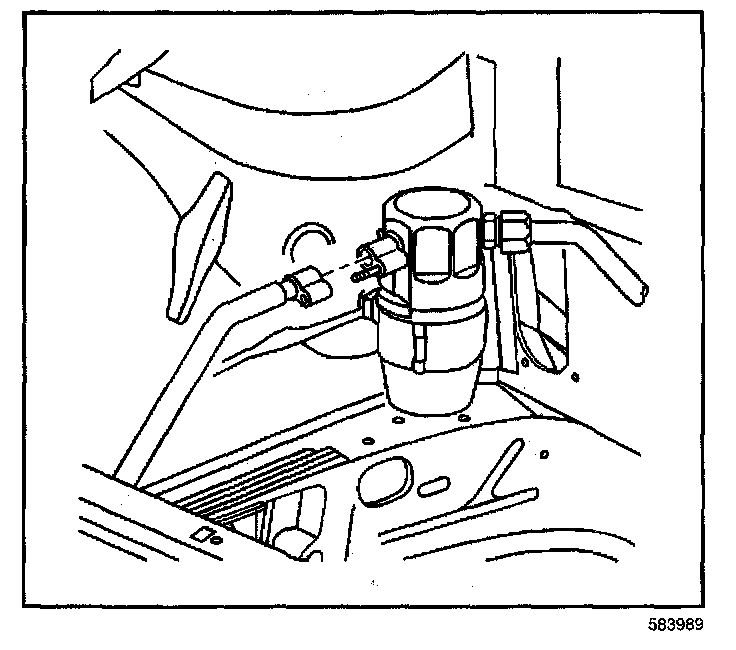

3. Remove the A/C compressor hose from the accumulator.

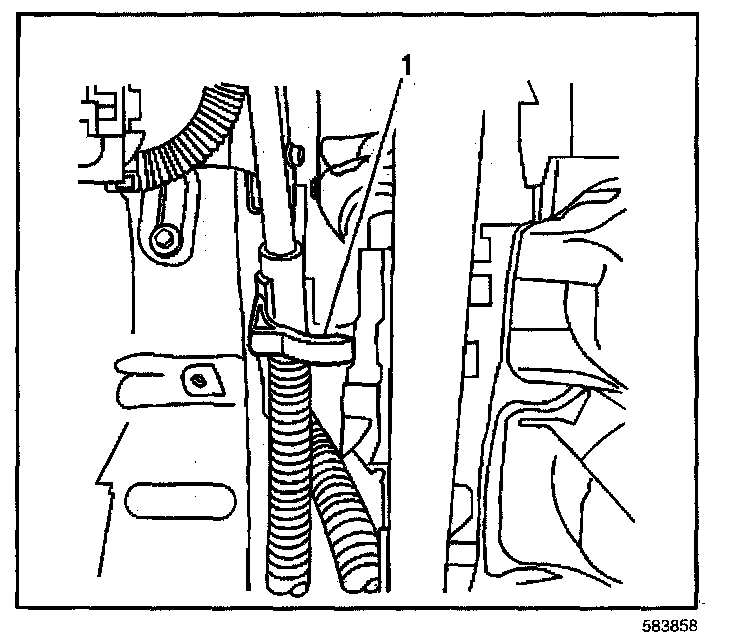

4. Disconnect the A/C hose retaining clip (1) at the rail.
5. Remove the A/C compressor hose from the condenser.
6. Disconnect the electrical connector from the A/C pressure sensor.

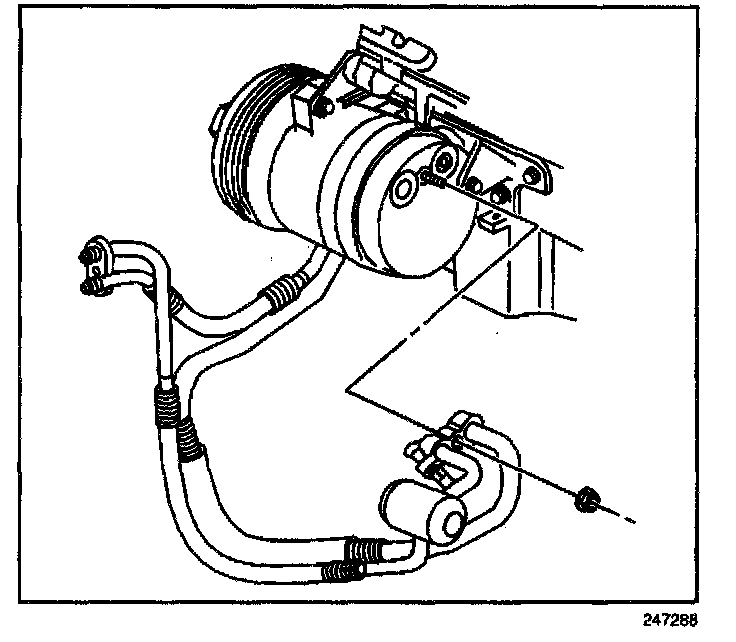

7. Remove the A/C compressor hose to A/C compressor nut.
8. Remove the A/C compressor hose from the vehicle.
INSTALLATION PROCEDURE
1. Install the A/C compressor hose to the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Connect the A/C hose to the compressor nut.
Tighten
Tighten the nut to 30 N.m (22 lb ft).
3. Connect the electrical connector to the A/C pressure switch.
4. Install the A/C compressor hose to the condenser.
Tighten
Tighten the condenser connection to 24 N.m (18 lb ft).
IMPORTANT: If the clip was damaged during removal, install a new clip.

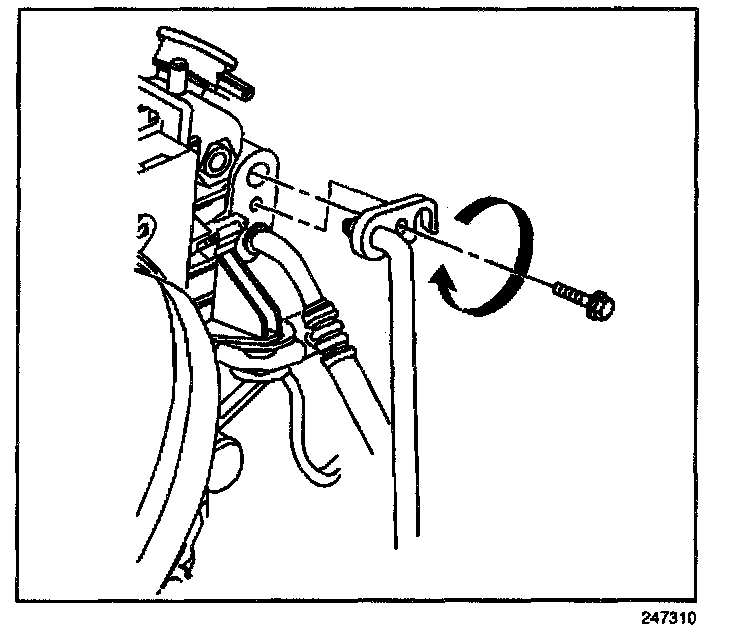

5. Install the A/C compressor hose into the clip on the rail and fasten.

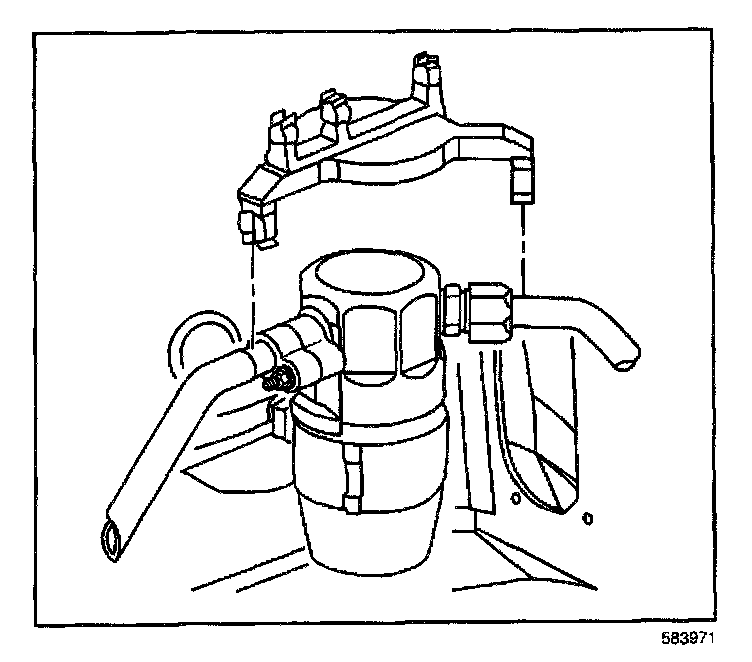

6. Install the A/C compressor hose to the accumulator.
Tighten
Tighten the accumulator connection to 24 N.m (18 lb ft).

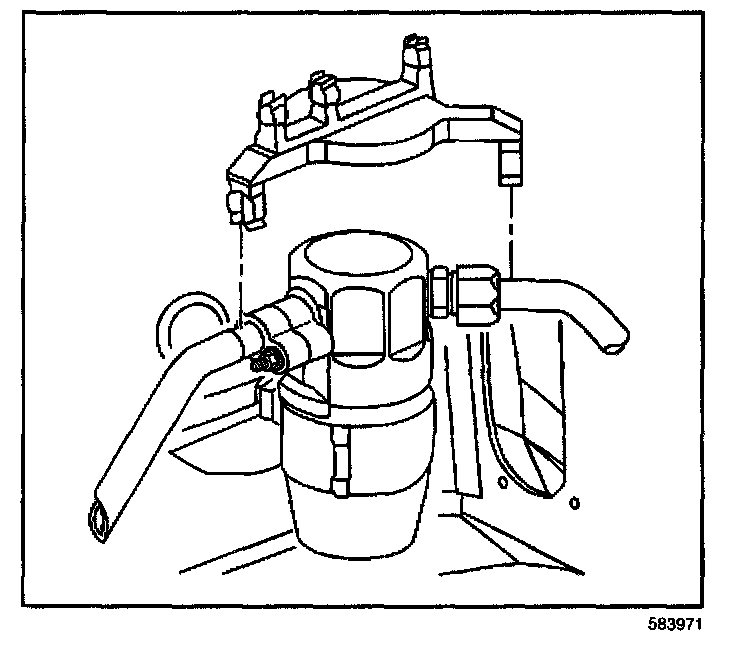

7. Install the upper A/C compressor hose clip.
8. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
9. Leak test the component fittings using the J 39400-A.
