Home
>>
Buick
>>
2001
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Washer Fluid Level Switch
>>
Windshield Wiper Motor
Windshield Wiper Motor

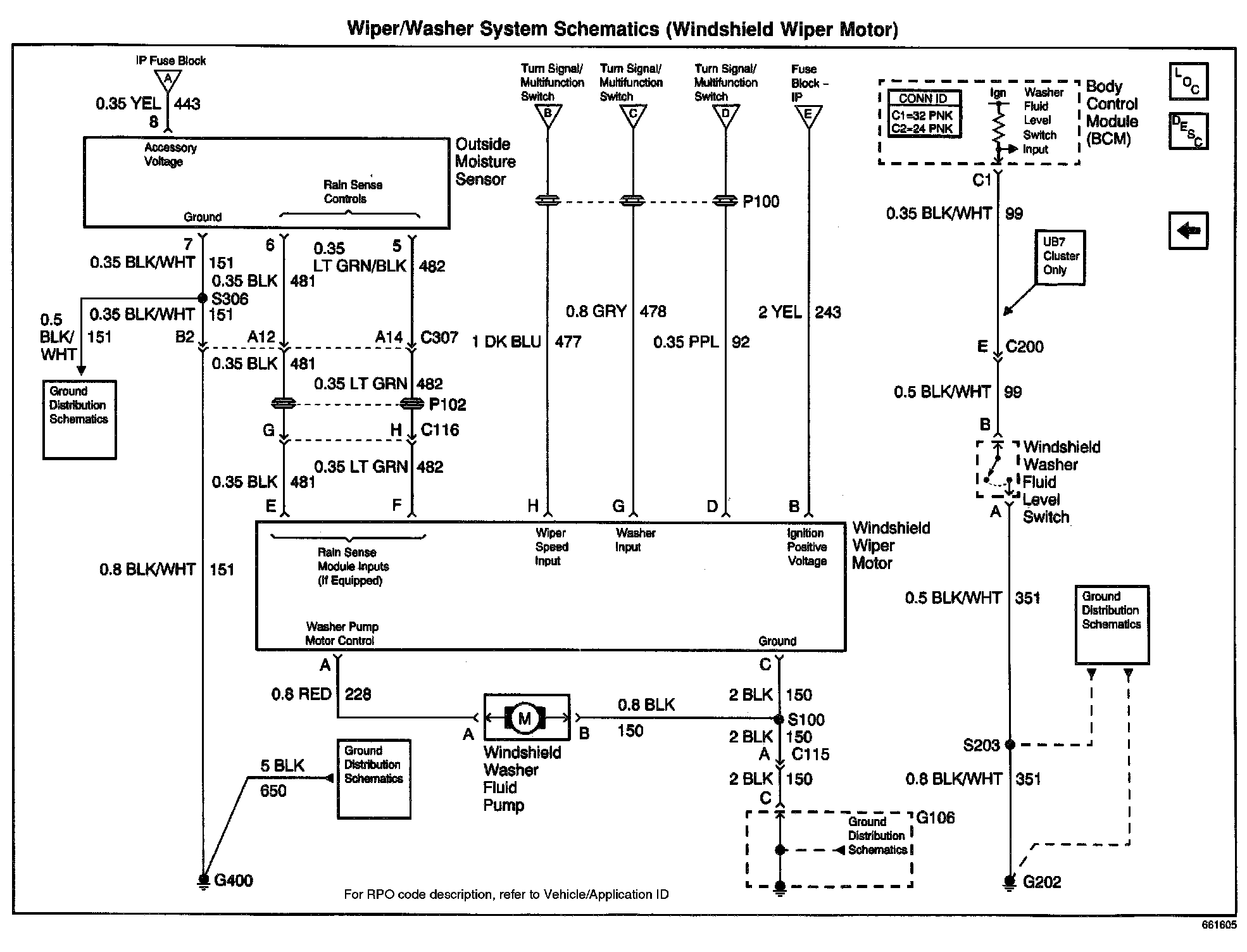

Wiper/Washer System Schematics: Windshield Wiper Motor:
